SYSTEM DESCRIPTION

BRIEF DESCRIPTION

(a) The Controller Area Network (CAN) is a serial data communication system for real time application. It is a vehicle multiplex communication system which has a high communication speed and the ability to detect malfunctions.

(b) Using the CANH and CANL bus lines as a pair, CAN communication is performed using a voltage differential. (A base voltage is applied to the pair of lines and a voltage differential is created when communicating.)

(d) 2 resistors which are necessary for communication are used in a CAN bus main line.

DEFINITION OF TERMS

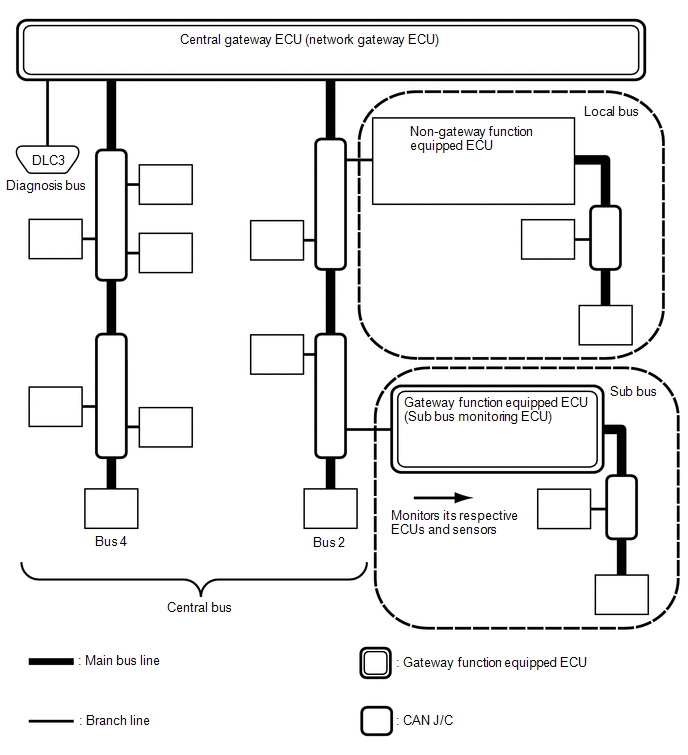

(a) Central bus

(1) The central bus is a term used to describe all buses directly connected to the central gateway ECU (network gateway ECU).

HINT:

A bus is displayed as Bus on the "Communication Bus Check" screen of the GTS.

(b) Sub bus

(1) A sub bus is a bus that has a gateway function equipped ECU in order to communicate with the central bus and other sub buses.

HINT:

A sub bus is displayed as Sub bus on the "Communication Bus Check" screen of the GTS.
When Sub bus is selected on the "Communication Bus Check" screen, ECUs and sensors connected to non-CAN networks such as LIN may also be displayed in addition to the ECUs and sensors connected to sub buses in the CAN network.

(1) A local bus is a bus that does not have the ability to communicate with other buses. ECUs and sensors on a local bus can only communicate with other ECUs and sensors on the same bus.

(d) CAN J/C

(1) A CAN junction connector is a connector that connects branch lines to a main bus.

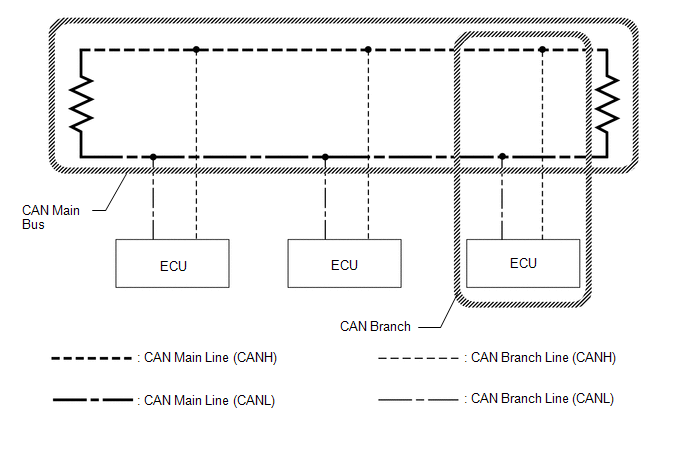

(e) Main bus

(1) A main bus line is the wire harness that runs between the 2 terminating resistors of a bus.

(f) Branch

(1) A branch line is a wire harness that connects an ECU or sensor to a main bus line.

(g) Terminating resistors

(1) Terminating resistors which maintain a stable signal inside the CAN bus are installed. 2 resistors of 120 Ω each located at each end of the bus are necessary.

System Diagram

SYSTEM DIAGRAM (a) The CAN communication system is composed of 8 buses. CAN Main Bus Line Terminating Resistor CAN Branch Line * Gateway Function Equipped ECU Bus Monitoring Direction - - Connected to Code ECU/Sensor Name GTS Display Applicability - CGW Central Gateway ECU (Network Gateway ECU) - Installed on all vehicles - DLC3 DLC3 - Installed on all vehicles Bus 1 F-CAM Forward Recognition Camera Front Camera Module w/ Toyota Safety Sense F-MR Millimeter Wave Radar Sensor Assembly Front Radar w/ Toyota Safety Sense CAN Global J/C NO...

How To Proceed With Troubleshooting

CAUTION / NOTICE / HINT NOTICE: Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output...
