Toyota Yaris: Clutch Master Cylinder / Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. REMOVE BRAKE BOOSTER ASSEMBLY
Click here
2. DISCONNECT NO. 1 CLUTCH RESERVOIR HOSE

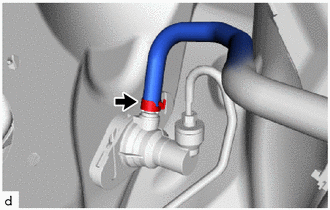

| (a) Slide the hose clip and disconnect the No. 1 clutch reservoir hose from the clutch master cylinder assembly. HINT: Use a container to collect the fluid. |
|
3. DISCONNECT CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE

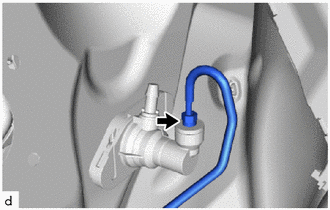

| (a) Using a 10 mm union nut wrench, disconnect the clutch master cylinder to flexible hose tube from the clutch master cylinder assembly. HINT: Use a container to collect the fluid. |
|
4. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN
Click here
5. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

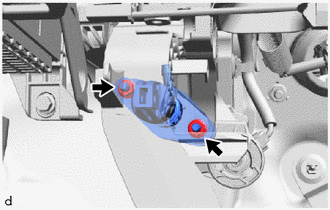

| (a) Remove the 2 nuts and clutch master cylinder assembly from the vehicle body. |
|
(b) Remove the clutch master cylinder gasket from the clutch master cylinder assembly.
Components
COMPONENTS ILLUSTRATION
*1 CLUTCH MASTER CYLINDER GASKET *2 CLUTCH MASTER CYLINDER ASSEMBLY *3 CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN *4 CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE *5 NO...
Installation
INSTALLATION PROCEDURE 1. INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (a) Install a new clutch master cylinder gasket to the clutch master cylinder assembly...
