Toyota Yaris: Occupant Detection Sensor / Removal
REMOVAL
CAUTION / NOTICE / HINT
-
Be sure to read Precaution thoroughly before servicing.
Click here
- Wear protective gloves. Sharp areas on the parts may injure your hands.
NOTICE:
If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.
Click here
HINT:

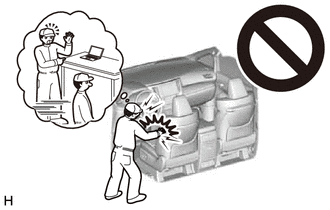

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. REMOVE FRONT SEAT ASSEMBLY
HINT:
Use the same procedure as for the driver side.
Click here
2. REMOVE FRONT SEAT INNER BELT ASSEMBLY
Click here
3. REMOVE SEPARATE TYPE FRONT SEAT CUSHION PAD
HINT:
Use the same procedure as for the driver side.
Click here
4. REMOVE RECLINING ADJUSTER RELEASE HANDLE
HINT:
Use the same procedure as for the driver side.
Click here
5. REMOVE FRONT SEAT CUSHION SHIELD
Click here
6. REMOVE FRONT SEAT INNER CUSHION SHIELD
Click here
7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
HINT:
Use the same procedure as for the driver side.
Click here
8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
HINT:
Use the same procedure as for the driver side.
Click here
9. REMOVE CONNECTOR HOLDER
Click here
10. REMOVE OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)
(a) for Sporty Seat Type:
(1) Using a screwdriver, disengage the claws to remove the occupant detection sensor (separate type front seat cushion pad) from the separate type front seat cushion cover as shown in the illustration.
| *a | Screwdriver | - | - |
(b) for Sports Seat Type:
(1) Using a screwdriver, disengage the claws to remove the occupant detection sensor (separate type front seat cushion pad) from the separate type front seat cushion cover as shown in the illustration.
| *a | Screwdriver | - | - |
