INSPECTION

PROCEDURE

1. INSPECT OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

If the result is not as specified, replace the occupant detection sensor (separate type front seat cushion pad).

A-1 - A-3

Front passenger side seat occupied

Below 100 Ω

A-1 - A-3

Front passenger side seat not occupied

1 MΩ or higher

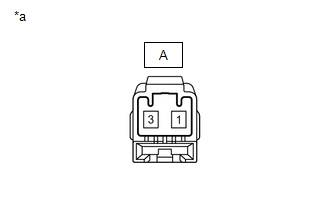

*a

Component without harness connected

(Occupant Detection Sensor (Separate Type Front Seat Cushion Pad))
