Toyota Yaris: Rear Crankshaft Oil Seal / Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear engine oil seal removal/installation are shown below.
NOTICE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
Lane tracing assist system | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. |
|
Pre-collision system |
Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) |
|
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
Power door lock control system | Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
PROCEDURE
1. REMOVE CLUTCH DISC ASSEMBLY
Click here
2. REMOVE FLYWHEEL SUB-ASSEMBLY
(a) Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTICE:
-
Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
-
To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
-
Using an engine sling device and engine lift, secure the engine assembly before servicing.

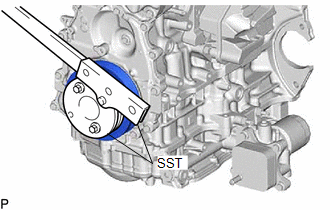

(b) Using SST, hold the crankshaft pulley assembly. SST: 09213-54015 SST: 09330-00021 | |

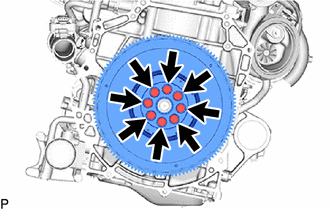

(c) Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly. | |
3. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE
(a) Remove the No. 1 crankshaft position sensor plate. | |
4. REMOVE REAR ENGINE OIL SEAL

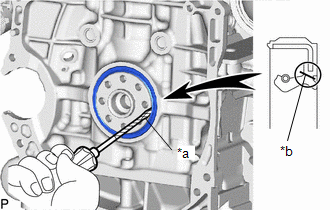

(a) Using a knife, cut off the lip of the rear engine oil seal. |
| *a | Protective Tape | *b | Cut Position | | |
(b) Using a screwdriver, pry out the rear engine oil seal.
NOTICE:
Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.
HINT:
Tape the screwdriver tip before use.

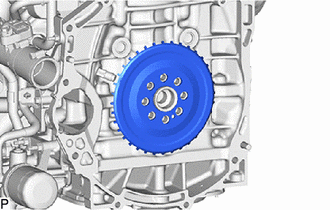

COMPONENTS ILLUSTRATION
*1 FLYWHEEL SUB-ASSEMBLY *2 NO. 1 CRANKSHAFT POSITION SENSOR PLATE *3 REAR ENGINE OIL SEAL - -
