INSTALLATION

PROCEDURE

1. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)

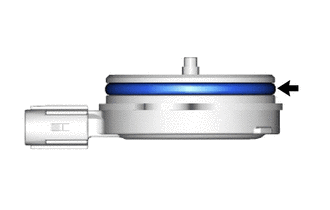

(a) Clean the O-ring groove of the camshaft timing oil control solenoid assembly.

NOTICE:

Make sure the O-ring groove is free of foreign matter.

(b) Install the O-ring to the camshaft timing oil control solenoid assembly.

NOTICE:

Do not damage the O-ring.

(c) Apply engine oil to the O-ring.

NOTICE:

If reusing the camshaft timing oil control solenoid assembly, be sure to inspect the O-ring.

(d) Install the camshaft timing oil control solenoid assembly to the No. 2 timing chain cover assembly with 2 new bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

  • If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.
  • Make sure that the O-ring is not cracked or moved out of place when installing the camshaft timing oil control solenoid assembly .

(e) Install the camshaft timing oil control solenoid assembly connector.

2. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)

(a) Clean the O-ring groove of the camshaft timing oil control solenoid assembly.

NOTICE:

Make sure the O-ring groove is free of foreign matter.

(b) Install the O-ring to the camshaft timing oil control solenoid assembly.

NOTICE:

Do not damage the O-ring.

(c) Apply engine oil to the O-ring.

NOTICE:

If reusing the camshaft timing oil control solenoid assembly, be sure to inspect the O-ring.

(d) Install the camshaft timing oil control solenoid assembly to the No. 2 timing chain cover assembly with 2 new bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

  • If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.
  • Make sure that the O-ring is not cracked or moved out of place when installing the camshaft timing oil control solenoid assembly .

(e) Install the camshaft timing oil control solenoid assembly connector.

3. INSPECT FOR ENGINE OIL LEAK

Click here
