Some variance occurs between the actual road and the displayed road. Such variance in distance perspective could lead to an accident. Note the following conditions that may cause a variance in distance perspective.

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther than the actual distance.

Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image

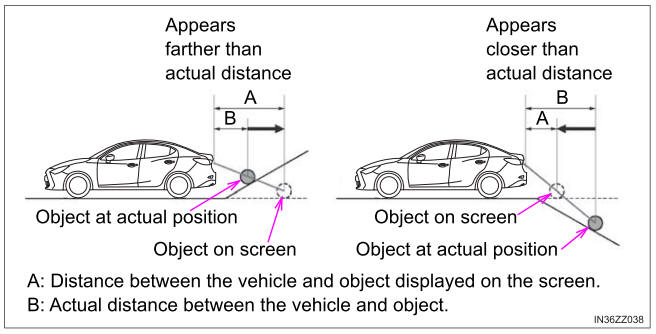

When there is a steep grade behind the vehicle

When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the screen appears farther (downgrade: closer) than the actual distance.

Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image

Three-dimensional object on vehicle rear

Because the distance guide lines are displayed based on a flat surface, the distance to the three dimensional object displayed on the screen is different from the actual distance.

Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image

Sensed distance on screen: Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image > Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image > Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image Actual distance:Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image > Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image = Toyota Yaris. Variance Between Actual Road Conditions and Displayed Image
