Toyota Yaris: Seat Belt Warning System / Terminals Of Ecu
TERMINALS OF ECU
CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND POWER DISTRIBUTION BOX ASSEMBLY
| *1 | Power Distribution Box Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
(a) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.
Click here
(b) Reconnect the power distribution box assembly connectors.
(c) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| MB-26 (BECU) - Body ground | Auxiliary battery power supply | Ignition switch off | 11 to 14 V |
| MB-27 (IGR) - Body ground | Ignition power supply (IG signal) | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| MB-13 (GND1) - Body ground | Ground | Always | Below 1 Ω |
(d) Install the main body ECU (multiplex network body ECU) to the power distribution box assembly.
Click here
(e) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| 4E-3 - Body ground | Front door courtesy light switch LH signal | Front door LH open | 11 to 14 V |
| Front door LH closed | Below 1 V | ||
| 4E-5 - Body ground | Front door courtesy light switch RH signal | Front door RH open | 11 to 14 V |
| Front door RH closed | Below 1 V | ||
| 4E-8 - Body ground | Rear RH seat belt buckle switch signal | Rear RH seat belt fastened | 11 to 14 V |
| Rear RH seat belt not fastened | Below 1 V | ||
| 4E-11 - Body ground | Front passenger side seat belt buckle switch signal | Front passenger side seat belt fastened | 11 to 14 V |
| Front passenger side seat belt not fastened | Below 1 V | ||
| 4E-19 - Body ground | Rear LH seat belt buckle switch signal | Rear LH seat belt fastened | 11 to 14 V |
| Rear LH seat belt not fastened | Below 1 V | ||
| 4E-29 - Body ground | Passenger seat occupant detection sensor signal | Ignition switch ON, front passenger seat occupied | Below 1 V |
| Ignition switch ON, front passenger seat not occupied | 11 to 14 V |

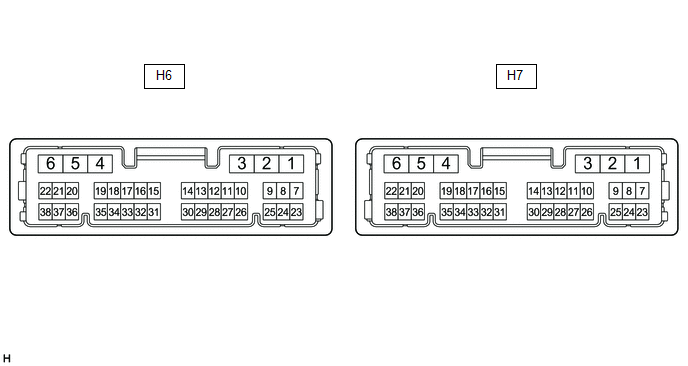

CHECK COMBINATION METER ASSEMBLY
(a) Disconnect the H6 combination meter assembly connectors.
(b) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H6-22 (B) - Body ground | Auxiliary battery power supply | Ignition switch off | 11 to 14 V |
| H6-38 (IG+) - Body ground | Ignition power supply (IG signal) | Ignition switch off | Below 1 Ω |
| Ignition switch ON | 10.5 to 16 V | ||
| H6-23 (ES) - Body ground | Ground | Always | Below 1 Ω |
(c) Connect the H7 combination meter assembly connectors.
(d) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H7-34 (BKL) - Body ground | Driver seat belt buckle switch signal | Driver seat belt fastened | 10 kΩ or higher |
| Driver seat belt unfastened | Below 1 Ω |
