TERMINALS OF ECU

NOTICE:

Turning the ignition switch to ON with connectors disconnected may cause DTCs to be stored. Make sure to clear the DTCs after inspection has been performed.
Do not apply excessive force to the millimeter wave radar sensor assembly connector.

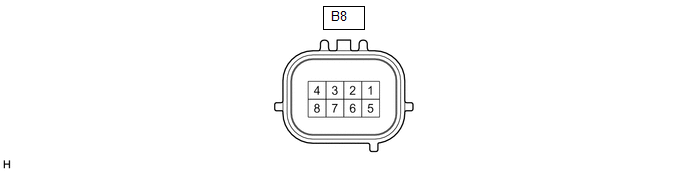

CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
B8-8 (IGB) - B8-1 (SGND)	Power source	Ignition switch ON	10.5 to 16 V
B8-8 (IGB) - B8-1 (SGND)	Power source	Ignition switch off	Below 1 V
B8-1 (SGND) - Body ground	Ground	Always	Below 1 Ω

CHECK FORWARD RECOGNITION CAMERA

Click here
