Toyota Yaris: Can Communication System / Terminals Of Ecu
TERMINALS OF ECU
NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Click here
- Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
- This section describes the standard values for all CAN related components.
HINT:
-
The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.
Click here
- Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
- Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.
NO. 1 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 1 global CAN junction connector.
(1) Connection diagram

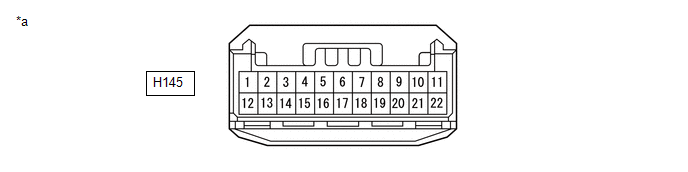

| *a | Front view of wire harness connector (to No. 1 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 1 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H145-1 (CANH) | LG | Power steering ECU assembly (for Bus 4) |
| H145-12 (CANL) | W | |
| H145-2 (CANH) | SB | Steering sensor (for Bus 4) |
| H145-13 (CANL) | W | |
| H145-4 (CANH) | BR | No. 2 global CAN junction connector (for Bus 4) |
| H145-15 (CANL) | W |
NO. 2 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 2 global CAN junction connector.
(1) Connection diagram

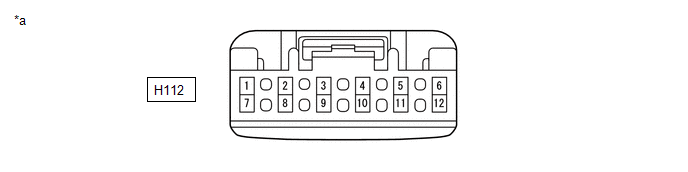

| *a | Front view of wire harness connector (to No. 2 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 2 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H112-1 (CANH) | B | Air bag sensor assembly (for Bus 4) |
| H112-7 (CANL) | W | |
| H112-2 (CANH) | V | Central gateway ECU (network gateway ECU) (for Bus 4) |
| H112-8 (CANL) | W | |
| H112-3 (CANH) | G | Brake actuator assembly (for Bus 4) |
| H112-9 (CANL) | W | |
| H112-4 (CANH) | BR | No. 1 global CAN junction connector (for Bus 4) |
| H112-10 (CANL) | W |
NO. 3 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 3 global CAN junction connector.
(1) Connection diagram

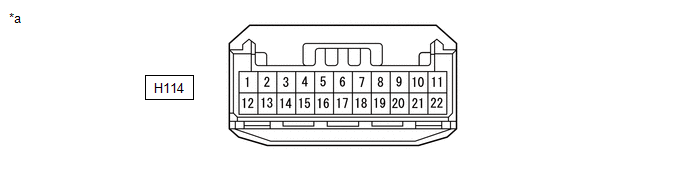

| *a | Front view of wire harness connector (to No. 3 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 3 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H114-1 (CANH) | B | Central gateway ECU (network gateway ECU) (for Bus 5) |
| H114-12 (CANL) | W | |
| H114-2 (CANH) | SB | Main body ECU (multiplex network body ECU) (for Bus 5) |
| H114-13 (CANL) | W | |
| H114-3 (CANH) | R | Air conditioning amplifier assembly (for Bus 5) |
| H114-14 (CANL) | W | |
| H114-4 (CANH) | L | Certification ECU (smart key ECU assembly) (for Bus 5) |
| H114-15 (CANL) | W |
NO. 4 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 4 global CAN junction connector.
(1) Connection diagram

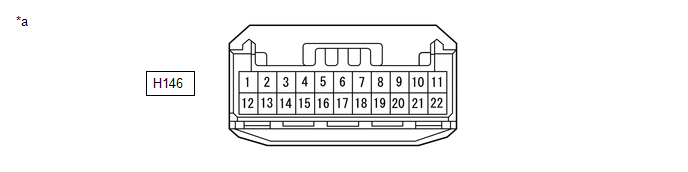

| *a | Front view of wire harness connector (to No. 4 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 4 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H146-1 (CANH) | R | Central gateway ECU (network gateway ECU) (for Bus 3) |
| H146-12 (CANL) | W | |
| H146-2 (CANH) | BR | Combination meter assembly (for Bus 3) |
| H146-13 (CANL) | W | |
| H146-5 (CANH) | SB | Meter mirror sub-assembly*1 (for Bus 3) |
| H146-16 (CANL) | W | |
| H146-6 (CANH) | G | Stereo component equalizer assembly*2 (for Bus 3) |
| H146-17 (CANL) | W |
- *1: w/ Headup Display
- *2: w/ Active Noise Control System

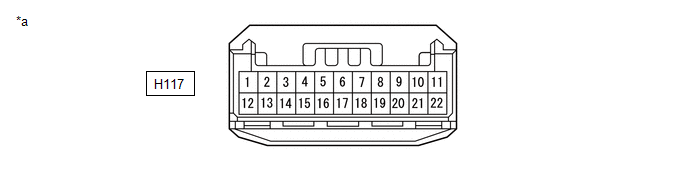

NO. 6 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 6 global CAN junction connector.
(1) Connection diagram
| *a | Front view of wire harness connector (to No. 6 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 5 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H117-1 (CANH) | Y | ECM (for Bus 2) |
| H117-12 (CANL) | W | |
| H117-2 (CANH) | BR | Engine stop and start ECU (for Bus 2) |
| H117-13 (CANL) | W | |
| H117-3 (CANH) | LG | Central gateway ECU (network gateway ECU) (for Bus 2) |
| H117-14 (CANL) | W | |
| H117-9 (CANH) | B | Brake actuator assembly (for Chassis Local Bus) |
| H117-20 (CANL) | W | |
| H117-10 (CANH) | R | Engine stop and start ECU (for Chassis Local Bus) |
| H117-21 (CANL) | W | |
| H117-11 (CANH) | V | Central gateway ECU (network gateway ECU) (for Chassis Local Bus) |
| H117-22 (CANL) | W |
NO. 7 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 7 global CAN junction connector.
(1) Connection diagram
| *a | Front view of wire harness connector (to No. 7 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 7 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| H118-1 (CANH) | R | Forward recognition camera*1 (for Bus 1) |
| H118-12 (CANL) | W | |
| H118-2 (CANH) | SB | Central gateway ECU (network gateway ECU) (for Bus 1) |
| H118-13 (CANL) | W | |
| H118-3 (CANH) | L | Millimeter wave radar sensor assembly*1 (for Bus 1) |
| H118-14 (CANL) | W | |
| H118-4 (CANH) | V | No. 8 global CAN junction connector (for Bus 1) |
| H118-15 (CANL) | W |
- *1: w/ Toyota Safety Sense
NO. 8 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 8 global CAN junction connector.
(1) Connection diagram

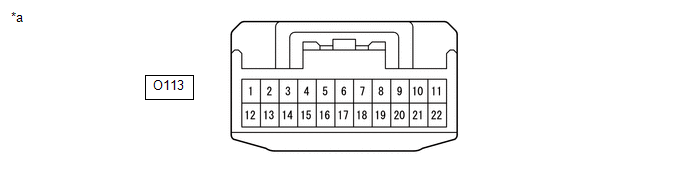

| *a | Front view of wire harness connector (to No. 8 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 8 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| O113-2 (CANH) | V | No. 7 global CAN junction connector (for Bus 1) |
| O113-13 (CANL) | W | |
| O113-5 (CANH) | R | No. 1 CAN junction terminal (for Bus 1) |
| O113-16 (CANL) | W |
NO. 9 GLOBAL CAN JUNCTION CONNECTOR
(a) Check the No. 9 global CAN junction connector.
(1) Connection diagram
| *a | Front view of wire harness connector (to No. 9 Global CAN Junction Connector) | - | - |
(2) Check the connection diagram of the components which are connected to the No. 9 global CAN junction connector.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| O125-1 (CANH) | G | Central gateway ECU (network gateway ECU) (for Bus 6) |
| O125-12 (CANL) | W | |
| O125-2 (CANH) | L | Central gateway ECU (network gateway ECU) (for Bus 6) |
| O125-13 (CANL) | W | |
| O125-3 (CANH) | V | 4WD ECU assembly (for Bus 6) |
| O125-14 (CANL) | W |
NO. 1 CAN JUNCTION TERMINAL
(a) Check the No. 1 CAN junction terminal.
(1) Connection diagram
| *a | Rear view of wire harness connector (to No. 1 CAN Junction Terminal) |
(2) Check the connection diagram of the components which are connected to the No. 1 CAN junction terminal.
| Terminal No. (Symbol) | Wiring Color | Connected to |
|---|---|---|
| O86-3 (CANH) | R | No. 8 global CAN junction connector (for Bus 1) |
| O86-2 (CANL) | W |
DLC3
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Measure the resistance according to the value(s) in the table below.

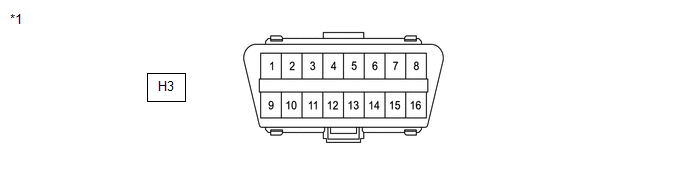

| *1 | DLC3 | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H3-6 (CANH) - H3-14 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H3-6 (CANH) - H3-4 (CG) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H3-14 (CANL) - H3-4 (CG) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H3-6 (CANH) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H3-14 (CANL) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

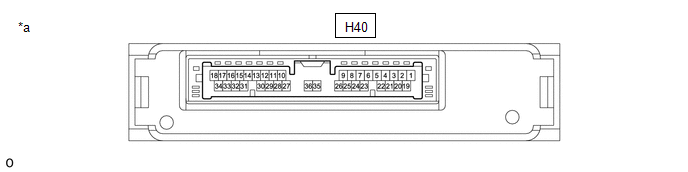

| *a | Component without harness connected (Central Gateway ECU (Network Gateway ECU)) | - | - |
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H40 central gateway ECU (network gateway ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.

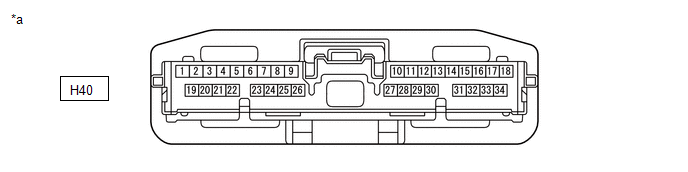

| *a | Front view of wire harness connector (to Central Gateway ECU (Network Gateway ECU)) | - | - |
Standard Resistance:
Diagnosis Bus Branch Lines (DLC3 - Central gateway ECU (network gateway ECU))| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-16 (CA6H) - H40-17 (CA6L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 1 MΩ or higher |
| H40-16 (CA6H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-17 (CA6L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-16 (CA6H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-17 (CA6L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-28 (CA1H) - H40-27 (CA1L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-28 (CA1H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-27 (CA1L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-28 (CA1H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-27 (CA1L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-26 (CA4H) - H40-25 (CA4L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-26 (CA4H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-25 (CA4L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-26 (CA4H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-25 (CA4L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-30 (CA3H) - H40-29 (CA3L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-30 (CA3H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-29 (CA3L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-30 (CA3H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-29 (CA3L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-24 (CA2H) - H40-23 (CA2L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-24 (CA2H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-23 (CA2L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-24 (CA2H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-23 (CA2L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-7 (CA5H) - H40-8 (CA5L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-7 (CA5H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-8 (CA5L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-7 (CA5H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-8 (CA5L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-31 (CA7H) - H40-10 (CAVH) | HIGH-level CAN bus line - HIGH-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | Below 1 Ω |
| H40-32 (CA7L) - H40-11 (CAVL) | LOW-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | Below 1 Ω |
| H40-31 (CA7H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-32 (CA7L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-31 (CA7H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-32 (CA7L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-5 (CA8H) - H40-6 (CA8L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-5 (CA8H) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-6 (CA8L) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-5 (CA8H) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-6 (CA8L) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H40-12 (CAWH) - H40-13 (CAWL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H40-12 (CAWH) - H40-22 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-13 (CAWL) - H40-22 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H40-12 (CAWH) - H40-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H40-13 (CAWL) - H40-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |

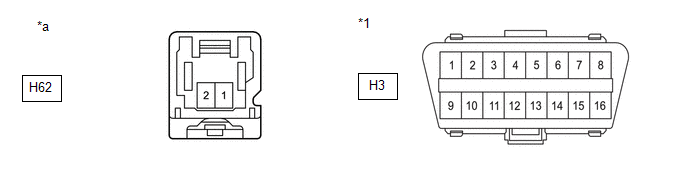

OPTION CONNECTOR (BUS BUFFER ECU)
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H62 option connector (bus buffer ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to Option Connector (Bus Buffer ECU)) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H62-2 (CAN+) - H62-1 (CAN-) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H62-2 (CAN+) - H3-4 (CG) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H62-1 (CAN-) - H3-4 (CG) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H62-2 (CAN+) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H62-1 (CAN-) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
ECM
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the A106 ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
| *a | Front view of wire harness connector (to ECM) |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A106-8 (CANH) - A106-18 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| A106-8 (CANH) - A106-10 (E1) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| A106-18 (CANL) - A106-10 (E1) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| A106-8 (CANH) - A106-1 (BATT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| A106-18 (CANL) - A106-1 (BATT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
BRAKE ACTUATOR ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the A108 brake actuator assembly connector.
(c) Measure the resistance according to the value(s) inthe table below.

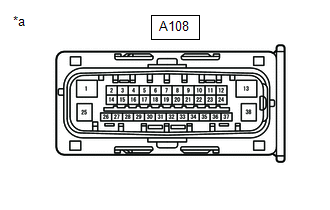

| *a | Front view of wire harness connector (to Brake Actuator Assembly) |
Standard Resistance:
Bus 4 Branch Lines| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A108-22 (CANH) - A108-10 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| A108-22 (CANH) - A108-25 (GND1) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| A108-10 (CANL) - A108-25 (GND1) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| A108-22 (CANH) - A108-38 (+BS) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| A108-10 (CANL) - A108-38 (+BS) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
STEERING SENSOR

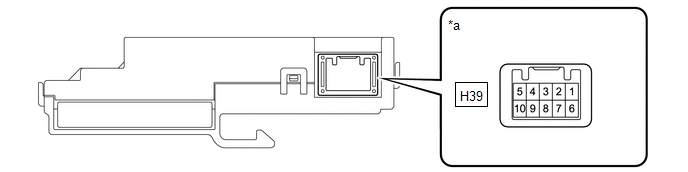

| *a | Component without harness connected (Steering Sensor) | - | - |
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H39 steering sensor connector.
(c) Measure the resistance according to the value(s) in the table below.

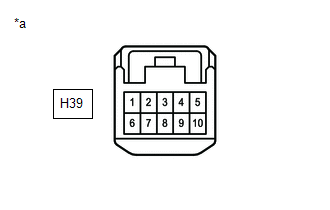

| *a | Front view of wire harness connector (to Steering Sensor) |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H39-3 (CANH) - H39-8 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H39-3 (CANH) - H39-6 (ESS) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H39-8 (CANL) - H39-6 (ESS) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H39-3 (CANH) - H39-4 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H39-8 (CANL) - H39-4 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
POWER STEERING ECU ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H1 and H2 power steering ECU assembly connectors.
(c) Measure the resistance according to the value(s) in the table below.

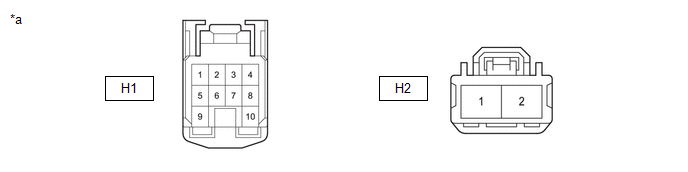

| *a | Front view of wire harness connector (to Power Steering ECU Assembly) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H1-7 (CANH) - H1-8 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H1-7 (CANH) - H2-2 (PGND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H1-8 (CANL) - H2-2 (PGND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H1-7 (CANH) - H2-1 (PIG) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H1-8 (CANL) - H2-1 (PIG) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
AIRBAG SENSOR ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H14 airbag sensor assembly connector.
(c) Measure the resistance according to the value(s) in the table below.

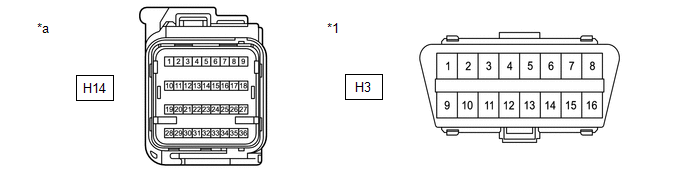

| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to Airbag Sensor Assembly) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H14-26 (CAFH) - H14-27 (CAFL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H14-26 (CAFH) - H14-33 (E1) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H14-27 (CAFL) - H14-33 (E1) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H14-26 (CAFH) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H14-27 (CAFL) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H46 certification ECU (smart key ECU assembly) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H46-1 (CANH) - H46-2 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H46-1 (CANH) - H46-29 (E) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H46-2 (CANL) - H46-29 (E) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H46-1 (CANH) - H46-6 (+B) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H46-2 (CANL) - H46-6 (+B) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |

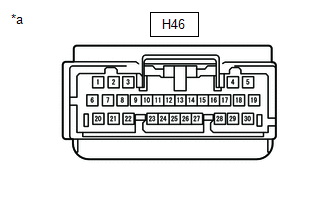

| *a | Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly)) |
METER MIRROR SUB-ASSEMBLY (w/ Headup Display)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H61 meter mirror sub-assembly connector.
(c) Measure the resistance according to the value(s) in the table below.

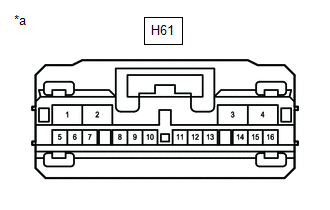

| *a | Front view of wire harness connector (to Meter Mirror Sub-assembly) |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H61-12 (MPX1) - H61-13 (MPX2) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H61-12 (MPX1) - H61-4 (ES) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H61-13 (MPX2) - H61-4 (ES) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H61-12 (MPX1) - H61-2 (B) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H61-13 (MPX2) - H61-2 (B) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
AIR CONDITIONING AMPLIFIER ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H24 air conditioning amplifier assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H24-2 (CANH) - H24-1 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H24-2 (CANH) - H24-17 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H24-1 (CANL) - H24-17 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H24-2 (CANH) - H24-5 (B) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H24-1 (CANL) - H24-5 (B) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |

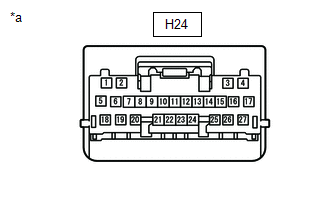

| *a | Front view of wire harness connector (to Air Conditioning Amplifier Assembly) |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H4 main body ECU (multiplex network body ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.

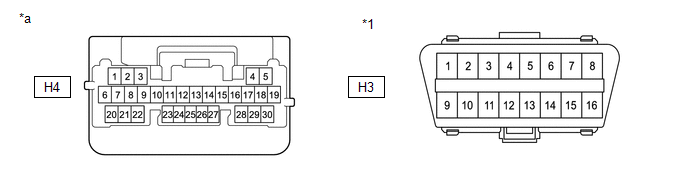

| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU)) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H4-2 (CANH) - H4-1 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H4-2 (CANH) - H3-4 (CG) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H4-1 (CANL) - H3-4 (CG) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H4-2 (CANH) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H4-1 (CANL) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
COMBINATION METER ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H6 combination meter assembly connector.
(c) Measure the resistance according to the value(s) in the table below.

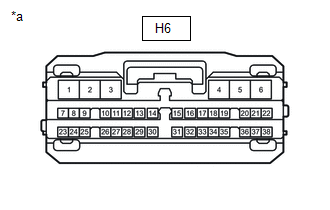

| *a | Front view of wire harness connector (to Combination Meter Assembly) |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H6-9 (CANH) - H6-25 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 108 to 132 Ω |
| H6-9 (CANH) - H6-23 (ES) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H6-25 (CANL) - H6-23 (ES) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H6-9 (CANH) - H6-22 (B) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H6-25 (CANL) - H6-22 (B) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
FORWARD RECOGNITION CAMERA (w/ Toyota Safety Sense)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the V10 forward recognition camera connector.
(c) Measure the resistance according to the value(s) in the table below.
| *1 | DLC3 | - | - |

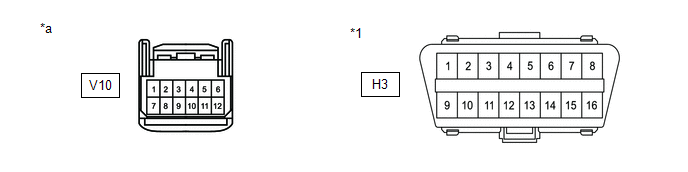

| *a | Front view of wire harness connector (to Forward Recognition Camera) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| V10-5 (CA1P) - V10-11 (CA1N) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| V10-5 (CA1P) - V10-10 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| V10-11 (CA1N) - V10-10 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| V10-5 (CA1P) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| V10-11 (CA1N) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Toyota Safety Sense)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the B8 millimeter wave radar sensor assembly connector.
(c) Measure the resistance according to the value(s) in the table below.

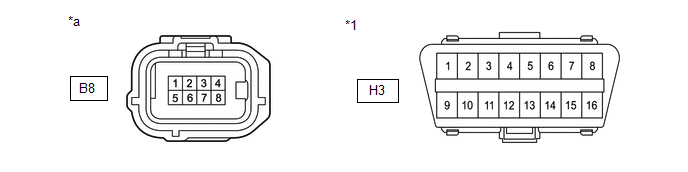

| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to Millimeter Wave Radar Sensor Assembly) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| B8-3 (CA2H) - B8-2 (CA2L) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| B8-3 (CA2H) - B8-1 (SGND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| B8-2 (CA2L) - B8-1 (SGND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| B8-3 (CA2H) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| B8-2 (CA2L) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
ENGINE STOP AND START ECU
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the H43 engine stop and start ECU connector.
(c) Measure the resistance according to the value(s) in the table below.

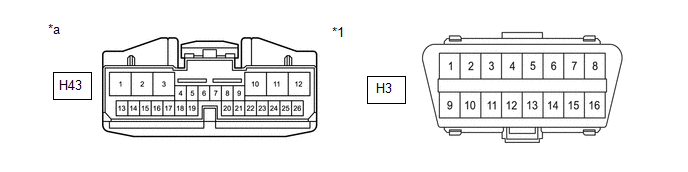

| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to Engine Stop and Start ECU) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H43-13 (CANH) - H43-14 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| H43-13 (CANH) - H3-4 (CG) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H43-14 (CANL) - H3-4 (CG) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| H43-13 (CANH) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| H43-14 (CANL) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
4WD ECU ASSEMBLY
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.

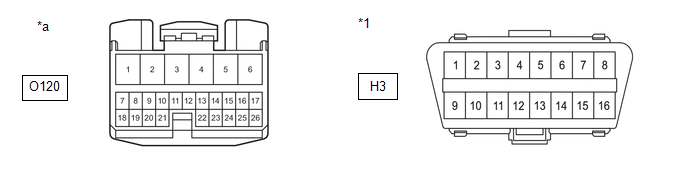

(b) Disconnect the O120 4WD ECU assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
| *1 | DLC3 | - | - |
| *a | Front view of wire harness connector (to 4WD ECU Assembly) | - | - |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| O120-17 (CANH) - O120-26 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| O120-17 (CANH) - H3-4 (CG) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| O120-26 (CANL) - H3-4 (CG) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| O120-17 (CANH) - H3-16 (BAT) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| O120-26 (CANL) - H3-16 (BAT) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
STEREO COMPONENT EQUALIZER ASSEMBLY (w/ Active Noise Control System)
Refer to Terminals of ECU.
Click here
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
(b) Disconnect the O131 stereo component equalizer assembly connector.
(c) Measure the resistance according to the value(s) in the table below.

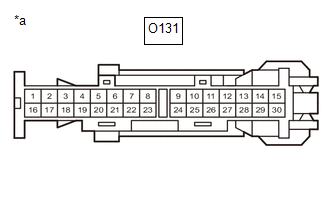

| *a | Front view of wire harness connector (to Stereo Component Equalizer Assembly) |
Standard Resistance:
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| O131-1 (CANH) - O131-16 (CANL) | HIGH-level CAN bus line - LOW-level CAN bus line | Cable disconnected from negative (-) auxiliary battery terminal | 54 to 69 Ω |
| O131-1 (CANH) - O131-30 (GND) | HIGH-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| O131-16 (CANL) - O131-30 (GND) | LOW-level CAN bus line - Ground | Cable disconnected from negative (-) auxiliary battery terminal | 200 Ω or higher |
| O131-1 (CANH) - O131-15 (+B) | HIGH-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
| O131-16 (CANL) - O131-15 (+B) | LOW-level CAN bus line - Auxiliary battery positive (+) | Cable disconnected from negative (-) auxiliary battery terminal | 6 kΩ or higher |
Utility
U..
Diagnosis System
DIAGNOSIS SYSTEM NOTICE: The following communication bus check screen is provided only as an example. This screen differs from the actual screen for this vehicle...
Other information:
Toyota Yaris XP210 (2020-2024) Reapir and Service Manual: Terminals Of Ecu
TERMINALS OF ECU CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (a) Disconnect the H46 certification ECU (smart key ECU assembly) connector. (b) Measure the voltage and resistance according to the value(s) in the table below. Tester Connection Terminal Description Condition Specified Condition Related Data List Item H46-29 (E) - Body ground Ground Always Below 1 Ω - H46-6 (+B) - H46-29 (E) Power supply Always 11 to 14 V - H45-22 (CUTB) - H46-29 (E) Dark current cut pin* Ignition switch off 11 to 14 V - *: In order to prevent the vehicle auxiliary battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit...
Toyota Yaris XP210 (2020-2024) Reapir and Service Manual: Reassembly
REASSEMBLY PROCEDURE 1. INSTALL INPUT SHAFT FRONT BEARING INNER RACE (a) Using SST and a press, install the input shaft front bearing inner race to the input shaft. SST: 09608-00071 2. INSTALL INPUT SHAFT SNAP RING (a) Using a brass bar and hammer, tap a new input shaft snap ring to the input shaft...
Categories
- Manuals Home
- Toyota Yaris Owners Manual
- Toyota Yaris Service Manual
- Auto Lock/Unlock Function
- G16e-gts (engine Mechanical)
- Starting the Engine
- New on site
- Most important about car
Liftgate/Trunk Lid
WARNING
Never allow a person to ride in the luggage compartment/trunk
Allowing a person to ride in the luggage compartment/trunk is dangerous. The person in the luggage compartment/trunk could be seriously injured or killed during sudden braking or a collision.
Do not drive with the liftgate/trunk lid open
