Toyota Yaris: Rear Brake / Removal
REMOVAL
CAUTION / NOTICE / HINT
NOTICE:
-

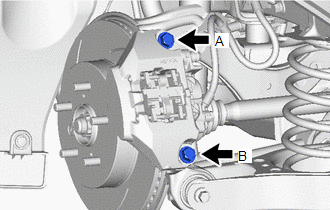

To avoid degrading the precision of the assembly, do not loosen or remove the 2 bolts shown in the illustration.
-
If the bolts have been loosened or removed, use the following procedure to reassemble the parts.
-
Temporarily install the rear disc brake cylinder assembly with the 2 bolts.
-
Start the engine.
-
Depress the brake pedal to continuously apply hydraulic pressure.
-
Temporarily tighten bolt A to 30 N*m (306 kgf*cm, 22 ft.*lbf).
-
Temporarily tighten bolt B to 30 N*m (306 kgf*cm, 22 ft.*lbf).
-
Fully tighten bolt A to 70 N*m (714 kgf*cm, 52 ft.*lbf).
-
Fully tighten bolt B to 70 N*m (714 kgf*cm, 52 ft.*lbf).
-
Release the brake pedal to release the hydraulic pressure.
-
Check that the 2 bolts are tightened to 70 N*m (714 kgf*cm, 52 ft.*lbf).
HINT:
-
Use the same procedure for the RH side and LH side.
-
The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR WHEEL
Click here
2. DRAIN BRAKE FLUID
NOTICE:
If brake fluid leaks onto any painted surface, immediately wash it off.
3. REMOVE REAR DISC BRAKE PIN HOLD CLIP
Click here
4. REMOVE REAR DISC BRAKE ANTI-RATTLE PIN
Click here
5. REMOVE REAR DISC BRAKE ANTI-RATTLE SPRING
Click here
6. REMOVE REAR DISC BRAKE PAD
Click here
7. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
Click here

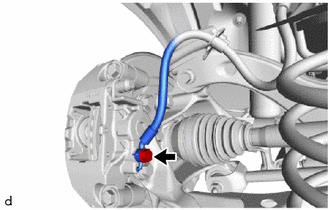

8. DISCONNECT REAR LH FLEXIBLE HOSE
(a) Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly. | |

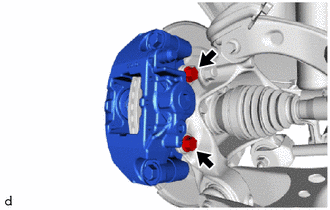

9. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY
(a) Remove the 2 bolts and rear disc brake cylinder assembly from the rear axle carrier sub-assembly. | |

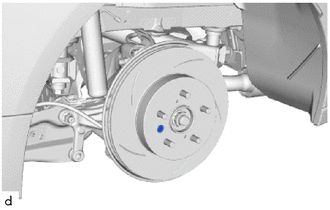

10. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
(a) Remove the parking brake shoe adjusting hole plug from the rear disc. | |
11. REMOVE REAR DISC

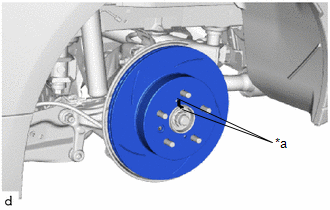

(a) Put matchmarks on the rear disc and the rear axle hub and bearing assembly. HINT: Not required when replacing the rear disc. | |
(b) Release the parking brake and remove the rear disc from the rear disc and the rear axle hub and bearing assembly.
| Contract |
HINT:
If the rear disc cannot be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.
COMPONENTS ILLUSTRATION
*1 REAR DISC BRAKE PIN HOLD CLIP *2 REAR DISC BRAKE ANTI-RATTLE PIN *3 REAR DISC BRAKE ANTI-RATTLE SPRING *4 REAR DISC BRAKE PAD *5 REAR DISC BRAKE ANTI-SQUEAL SHIM - - ILLUSTRATION
*1 REAR FLEXIBLE HOSE *2 UNION BOLT *3 GASKET *4 REAR DISC BRAKE CYLINDER ASSEMBLY *5 PARKING BRAKE SHOE ADJUSTING HOLE PLUG *6 REAR DISC
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft...
DISASSEMBLY PROCEDURE 1. REMOVE CYLINDER BOOT (a) Using a screwdriver with its tip wrapped with protective tape, remove the 2 cylinder boots from the rear disc brake cylinder...
