Toyota Yaris: Clutch Unit / Inspection

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Drivetrain / Clutch / Clutch Unit / Inspection

INSPECTION

PROCEDURE

1. INSPECT CLUTCH DISC ASSEMBLY

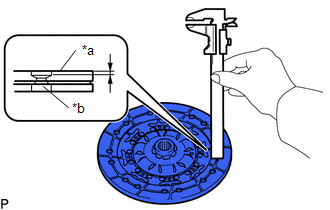

(a) Using a vernier caliper, measure the rivet head depth.

Minimum Rivet Head Depth:

0.3 mm (0.0118 in.)

If necessary, replace the cover and disc clutch set.

*a

Facing

*b

Rivet

(b) Install the clutch disc assembly to the manual transaxle assembly.

HINT:

Insert the clutch disc assembly in the correct direction.

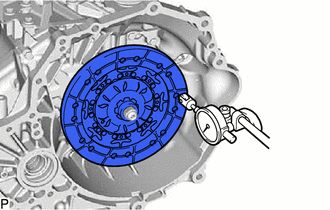

(c) Using a dial indicator, measure the clutch disc assembly runout.

Maximum Runout:

0.8 mm (0.0315 in.)

If necessary, replace the cover and disc clutch set.

2. INSPECT CLUTCH COVER ASSEMBLY

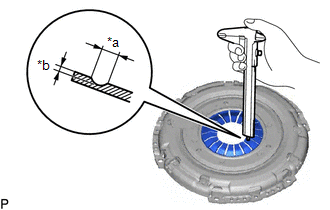

(a) Using a vernier caliper, measure the depth and width of the diaphragm spring wear.

Maximum:

Depth

0.5 mm (0.0197 in.)

Width

6.0 mm (0.236 in.)

If necessary, replace the cover and disc clutch set.

*a

Width

*b

Depth

3. INSPECT FLYWHEEL SUB-ASSEMBLY

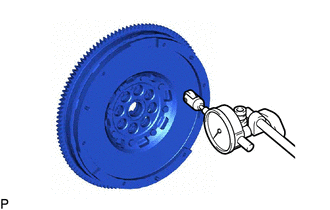

(a) Using a dial indicator, check the flywheel sub-assembly runout.

Maximum Runout:

0.1 mm (0.00394 in.)

If necessary, replace the flywheel sub-assembly.
