REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the LH side and RH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE

Click here

2. REMOVE COWL SIDE TRIM BOARD

Click here

3. REMOVE ROOF SIDE RAIL WEATHERSTRIP

(a) Remove the 3 clips.

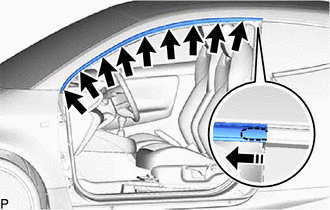

(b) Disengage the clips to remove the front roof side rail weatherstrip.

4. REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER

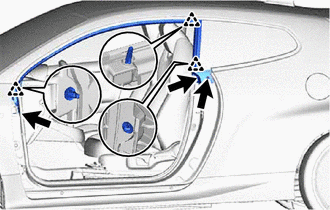

(a) Remove the 9 screws and roof side rail weatherstrip retainer as shown in the illustration.

Remove in this Direction

5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

(a) Remove the front door opening trim weatherstrip.

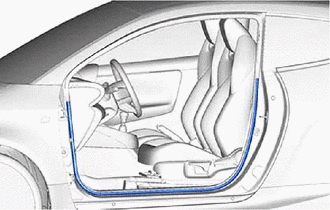

    Components

    C..

    Installation
