Toyota Yaris: Instrument Panel Safety Pad / Reassembly
REASSEMBLY
PROCEDURE
1. INSTALL ANTENNA CORD SUB-ASSEMBLY
Click here
2. INSTALL INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY
Click here
3. INSTALL NO. 2 INSTRUMENT PANEL WIRE
Click here
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
| (a) Engage the guide and claws to install the instrument cluster finish panel ornament. |
|
5. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

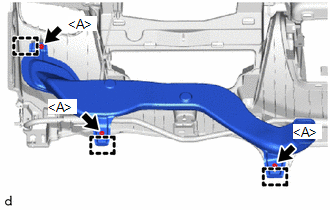

| (a) Engage the guides to install the No. 2 side defroster nozzle duct. |
|
(b) Install the 3 screws <A>.
6. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
| (a) Engage the guides to install the No. 1 side defroster nozzle duct. |
|
(b) Install the 3 screws <A>.
7. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

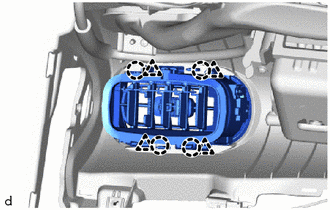

| (a) Engage the claws and clips to install the No. 2 instrument panel register assembly. |
|
8. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
HINT:
Use the same procedure as for the No. 2 side.
9. INSTALL NO. 1 SIDE DEFROSTER NOZZLE

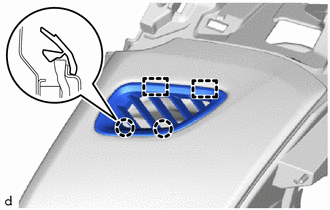

| (a) Engage the guides and claws to install the No. 1 side defroster nozzle. |
|
10. INSTALL NO. 2 SIDE DEFROSTER NOZZLE
HINT:
Use the same procedure as for the No. 1 side.
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE NO. 1 SIDE DEFROSTER NOZZLE (a) Disengage the claws and guides to remove the No. 1 side defroster nozzle.
2...
