Toyota Yaris: Back Door / Reassembly

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Door / Hatch / Back Door / Reassembly

REASSEMBLY

PROCEDURE

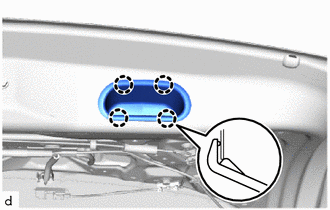

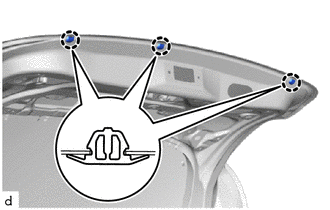

1. INSTALL BACK DOOR DUST PROOF SEAL

(a) Engage the claw to install 3 new back door dust proof seals.

2. INSTALL NO. 2 BACK DOOR WIRE

(a) Engage the clamps to install the No. 2 back door wire.

(b) Connect the 3 connectors.

3. INSTALL LICENSE PLATE LIGHT ASSEMBLY

Click here

4. INSTALL BACK DOOR PANEL CUSHION

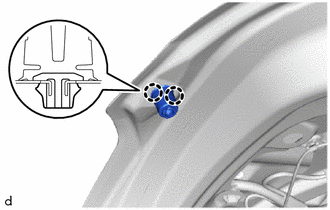

(a) Engage the claws to install a new back door panel cushion.

HINT:

Use the same procedure as for the opposite side.

5. INSTALL NO. 1 BACK DOOR PANEL PROTECTOR

HINT:

Use the same procedure as for the opposite side.

(a) Clean back door installation surface.

(b) Remove the release paper from a new No. 1 back door panel protector.

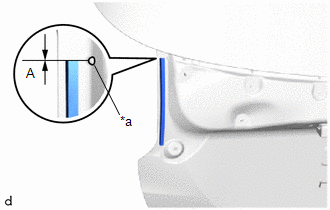

(c) Install the No. 1 back door panel protector as shown in the illustration.

Standard Measurement:

Area

Measurement

A

-5.0 to 5.0 mm (-0.197 to 0.197 in.)

*a

Location Bead

6. INSTALL REAR SPOILER ASSEMBLY

Click here

7. INSTALL NO. 2 BACK DOOR GARNISH RETAINER

(a) Engage the claws to install the No. 2 back door garnish retainer.

(b) Install the 2 screws.

8. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY

Click here

9. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

10. INSTALL DOOR PULL HANDLE

(a) Engage the claws to install the door pull handle.

11. INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

Click here

12. INSTALL BACK DOOR TRIM COVER

(a) Engage the clips to install the back door trim cover.

13. INSTALL BACK DOOR TRIM BOARD

(a) Install the back door trim board with the 11 clips.
