INSTALLATION
PROCEDURE
1. INSTALL REAR DIFFERENTIAL SUPPORT
(a) Install the differential support to the rear differential carrier assembly with 3 new bolts.
Torque:
120 N·m {1224 kgf·cm, 89 ft·lbf}
2. INSTALL REAR DIFFERENTIAL DYNAMIC DAMPER
(a) Install the rear differential dynamic damper to the differential support with 2 bolts.
Torque:
39 N·m {398 kgf·cm, 29 ft·lbf}
3. INSTALL REAR UPPER DIFFERENTIAL MOUNT STOPPER
(a) Install the 2 rear upper differential mount stoppers to the rear No. 1 differential support.
NOTICE:
Keep the rear upper differential mount stoppers free of oil and foreign matter.
4. TEMPORARILY INSTALL DIFFERENTIAL CARRIER ASSEMBLY
NOTICE:
(a) Support the rear differential carrier assembly with an engine lifter using 2 attachments or equivalent tools as shown in the illustration. HINT: Raise the rear differential carrier assembly until the vacuum hose can be installed. |
|

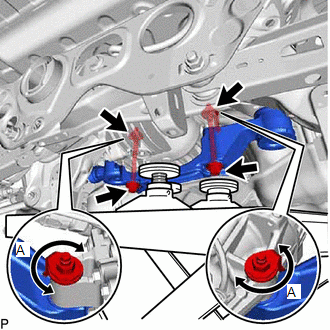

(b) Temporarily install the rear No. 1 differential support to the rear differential carrier assembly with 2 new bolts and 2 new nuts. NOTICE:
HINT: The nuts have tabs to prevent them from rotating. | |

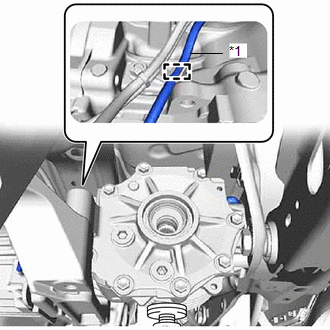

(c) Install the vacuum hose to the clamp. NOTICE: Do not damage the vacuum hose and electro magnetic control coupling wire harness. |
|
(d) Install the vacuum hose to the clamp (B). |
|

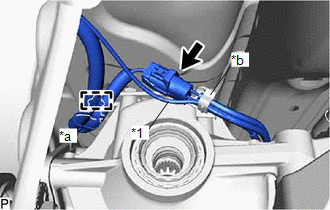

(e) Connect the connector and engage the clamp (A).

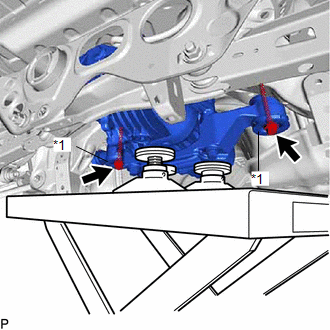

(f) Temporarily install the rear differential carrier assembly to the front side of the rear suspension member sub-assembly with the 2 rear lower differential mount stoppers, 2 new bolts. NOTICE: Keep the bolt and rear lower differential mount stoppers free of oil and foreign matter. HINT:
|
|
(g) Temporarily install the rear differential carrier assembly to the rear differential support with the new bolts. | |
5. FULLY INSTALL DIFFERENTIAL CARRIER ASSEMBLY

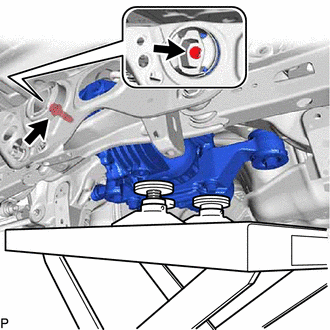

(a) Tighten the bolt. Torque: 130 N·m {1326 kgf·cm, 96 ft·lbf} NOTICE: Do not tighten the bolts with the inner cylinder or rear No. 1 differential mount cushion tilted. | |

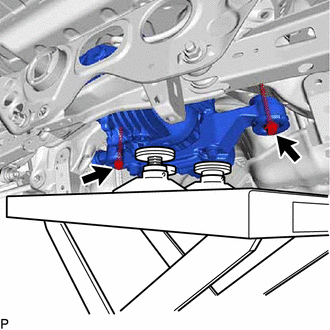

(b) Tighten the 2 bolts. Torque: 82 N·m {836 kgf·cm, 60 ft·lbf} HINT: Lower the engine lifter to the extent that the bolts can still be tightened. | |

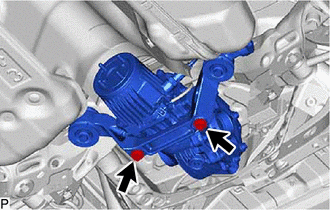

(c) Tighten the 2 bolts. Torque: 86 N·m {877 kgf·cm, 63 ft·lbf} | |
(d) Lower the engine lifter.

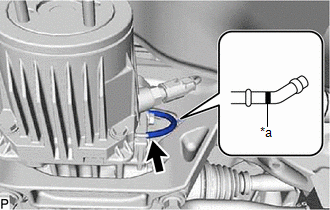

(e) Connect the vacuum hose to the electro magnetic control coupling sub-assembly. NOTICE: Connect the vacuum hose until it reaches the paint mark. |
|
6. INSTALL REAR STABILIZER BAR
Click here
7. INSTALL REAR DRIVE SHAFT ASSEMBLY
Click here
8. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Click here
9. ADD DIFFERENTIAL OIL
Click here
10. INSPECT FOR DIFFERENTIAL OIL LEAK
11. ACTIVE TORQUE SPLIT AWD SYSTEM CALIBRATION
Click here
