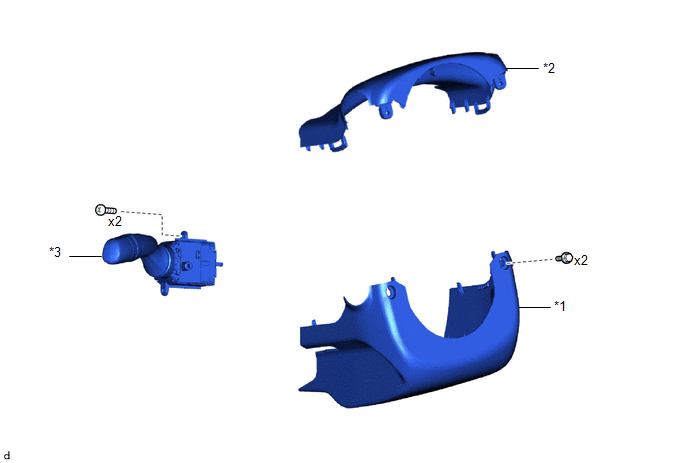

Toyota Yaris: Headlight Dimmer Switch / Components

Headlight Dimmer Switch

..

Removal

REMOVAL PROCEDURE 1. REMOVE LOWER STEERING COLUMN COVER Click here 2. REMOVE UPPER STEERING COLUMN COVER Click here 3. REMOVE TURN SIGNAL SWITCH (a) Remove the 2 screws...

Other information:

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual: Inspection

INSPECTION PROCEDURE 1. INSPECT TURN SIGNAL SWITCH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: Light Control Switch Tester Connection Condition Specified Condition z6-7 (A) - z6-5 (EL) Light control switch in AUTO position Below 1 Ω z6-3 (T) - z6-5 (EL) Light control switch in tail position Below 1 Ω z6-12 (H) - z6-5 (EL) Light control switch in head position Below 1 Ω Dimmer Passing Switch Tester Connection Condition Specified Condition z6-11 (HF) - z6-5 (EL) Dimmer switch in high flash position Below 1 Ω z6-16 (HU) - z6-5 (EL) Dimmer switch in high position Below 1 Ω Fog Light Switch Tester Connection Condition Specified Condition z6-4 (B) - z6-5 (EL) Fog light switch in rear position Below 1 Ω z6-13 (BFG) - z6-5 (EL) Fog light switch in front position Below 1 Ω Turn Signal Switch Tester Connection Condition Specified Condition z6-8 (TR) - z6-5 (EL) Turn signal switch in neutral position 10 kΩ or higher z6-14 (TL) - z6-5 (EL) Turn signal switch in neutral position 10 kΩ or higher z6-8 (TR) - z6-5 (EL) Turn signal switch in right turn position Below 1 Ω z6-8 (TR) - z6-5 (EL) Turn signal switch in full right turn position Below 1 Ω z6-8 (TR) - z6-6 (CR) Turn signal switch in full right turn position Below 1 Ω z6-6 (CR) - z6-5 (EL) Turn signal switch in full right turn position Below 1 Ω z6-14 (TL) - z6-5 (EL) Turn signal switch in left turn position Below 1 Ω z6-14 (TL) - z6-5 (EL) Turn signal switch in full left turn position Below 1 Ω z6-14 (TL) - z6-6 (CR) Turn signal switch in full left turn position Below 1 Ω z6-6 (CR) - z6-5 (EL) Turn signal switch in full left turn position Below 1 Ω If the result is not as specified, replace the turn signal switch...
