Toyota Yaris: Front Camera System / Terminals Of Ecu
TERMINALS OF ECU
NOTICE:
-
DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the GTS once the inspection has been completed.
-
Do not apply excessive force to the forward recognition camera connector.

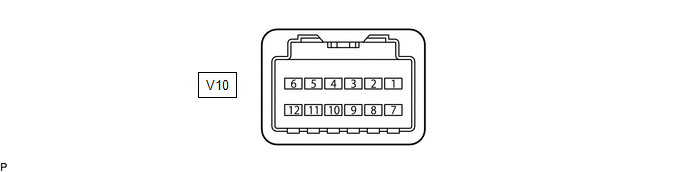

CHECK FORWARD RECOGNITION CAMERA
(a) Measure the voltage and resistance according to the value(s) in the table below.
Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
V10-7 (IGB) - V10-10 (GND) | Power source | Ignition switch ON | 11 to 14 V |
Ignition switch off | Below 1 V |
V10-1 (HTR) - V10-10 (GND) | Forward recognition with heater hood sub-assembly operation signal | Ignition switch ON Forward recognition with heater hood sub-assembly not operating | 11 to 14 V |
Ignition switch ON Forward recognition with heater hood sub-assembly operating | Below 1 V |
V10-10 (GND) - Body ground | Ground | Always | Below 1 Ω |
