DESCRIPTION
The main body ECU (multiplex network body ECU) controls the, taillight and license plate light.

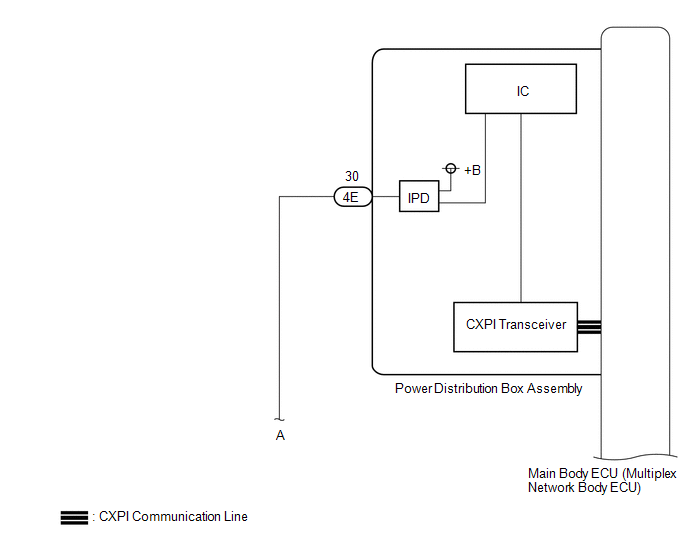

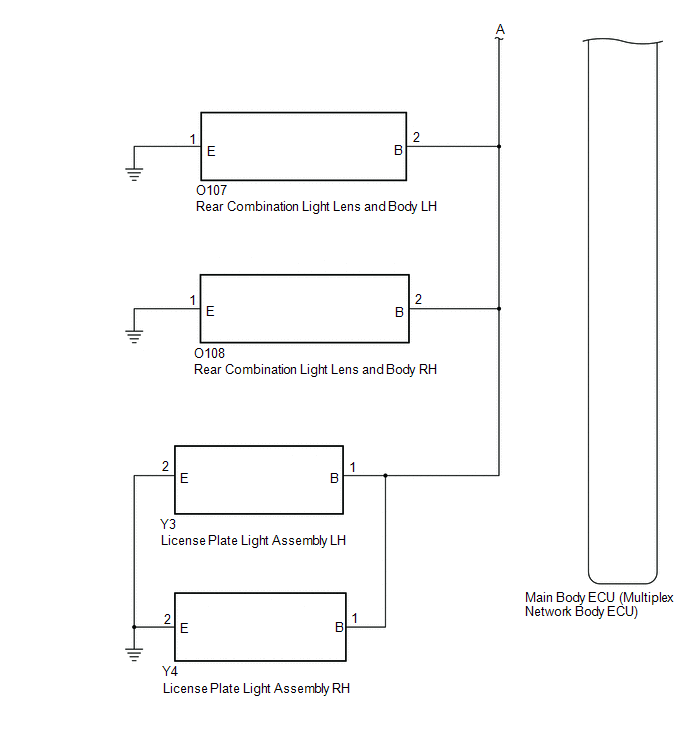

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
Click here
Click here
PROCEDURE
1. | READ VALUE USING GTS |
(a) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Input Signal | Tail light input | OFF or ON | OFF: Taillight is not input ON: Tail light is input | - |
Tester Display |
---|
Tail Light Input Signal |
OK:
Display changes according to the taillight illumination condition.
NG | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
|
2. | READ VALUE USING GTS |
(a) Turn the light control switch to the TAIL position.
(b) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Fuse Shut Off Status | Tail light fuse condition | OFF or ON | OFF: Taillight fuse not shut off ON: Taillight fuse shut off | - |
Tester Display |
---|
Tail Light Fuse Shut Off Status |
OK:
The Data List value displays "OFF".
NG | GO TO STEP 4 |
|
3. | READ VALUE USING GTS |
(a) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Output Signal | Tail light output | OFF or ON | OFF: Taillight is not output ON: Tail light is output | - |
Tester Display |
---|
Tail Light Output Signal |
OK:
Display changes according to the taillight illumination condition.
OK | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
NG | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
4. | INSPECT REAR COMBINATION LIGHT LENS AND BODY LH |
(a) Disconnect the O107 rear combination light lens and body LH connector.
(b) Turn the light control switch to the AUTO (OFF) position.
NOTICE:
If the low beam headlights or clearance lights illuminate when the ignition switch is turned ON, shine a light on the automatic light control sensor to turn the low beam headlights off before operating the headlight dimmer switch.
(c) Turn the light control switch to the TAIL position.
(d) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Fuse Shut Off Status | Tail light fuse condition | OFF or ON | OFF: Taillight fuse not shut off ON: Taillight fuse shut off | - |
Tester Display |
---|
Tail Light Fuse Shut Off Status |
OK:
The Data List value displays "OFF".
OK | REPLACE REAR COMBINATION LIGHT LENS AND BODY LH |
|
5. | INSPECT REAR COMBINATION LIGHT LENS AND BODY RH |
(a) Disconnect the O108 rear combination light lens and body RH connector.
(b) Turn the light control switch to the AUTO (OFF) position.
NOTICE:
If the low beam headlights or clearance lights illuminate when the ignition switch is turned ON, shine a light on the automatic light control sensor to turn the low beam headlights off before operating the headlight dimmer switch.
(c) Turn the light control switch to the TAIL position.
(d) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Fuse Shut Off Status | Tail light fuse condition | OFF or ON | OFF: Taillight fuse not shut off ON: Taillight fuse shut off | - |
Tester Display |
---|
Tail Light Fuse Shut Off Status |
OK:
The Data List value displays "OFF".
OK | REPLACE REAR COMBINATION LIGHT LENS AND BODY RH |
|
6. | INSPECT LICENSE PLATE LIGHT ASSEMBLY LH |
(a) Disconnect the Y3 license plate light assembly LH connector.
(b) Turn the light control switch to the AUTO (OFF) position.
NOTICE:
If the low beam headlights or clearance lights illuminate when the ignition switch is turned ON, shine a light on the automatic light control sensor to turn the low beam headlights off before operating the headlight dimmer switch.
(c) Turn the light control switch to the TAIL position.
(d) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Fuse Shut Off Status | Tail light fuse condition | OFF or ON | OFF: Taillight fuse not shut off ON: Taillight fuse shut off | - |
Tester Display |
---|
Tail Light Fuse Shut Off Status |
OK:
The Data List value displays "OFF".
OK | REPLACE LICENSE PLATE LIGHT ASSEMBLY LH |
|
7. | INSPECT LICENSE PLATE LIGHT ASSEMBLY RH |
(a) Disconnect the Y4 license plate light assembly RH connector.
(b) Turn the light control switch to the AUTO (OFF) position.
NOTICE:
If the low beam headlights or clearance lights illuminate when the ignition switch is turned ON, shine a light on the automatic light control sensor to turn the low beam headlights off before operating the headlight dimmer switch.
(c) Turn the light control switch to the TAIL position.
(d) Using the GTS, read the Data List.
Body Electrical > Power Distribution Box > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Tail Light Fuse Shut Off Status | Tail light fuse condition | OFF or ON | OFF: Taillight fuse not shut off ON: Taillight fuse shut off | - |
Tester Display |
---|
Tail Light Fuse Shut Off Status |
OK:
The Data List value displays "OFF".
OK | REPLACE LICENSE PLATE LIGHT ASSEMBLY RH |
|
8. | CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - REAR COMBINATION LIGHT LENS AND BODY AND LICENSE PLATE LIGHT ASSEMBLY) |
(a) Disconnect the O107 rear combination light lens and body LH connector.
(b) Disconnect the O108 rear combination light lens and body RH connector.
(c) Disconnect the Y3 license plate light assembly LH connector.
(d) Disconnect the Y4 license plate light assembly RH connector.
(e) Disconnect the cable from the negative (-) auxiliary battery terminal.
(f) Disconnect the 4E power distribution box assembly connector.
(g) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition | Specified Condition |
---|---|---|
O107-2 (B) or 4E-30 - Body ground | Always | 10 kΩ or higher |
O108-2 (B) or 4E-30 - Body ground | Always | 10 kΩ or higher |
Y3-1 (B) or 4E-30 - Body ground | Always | 10 kΩ or higher |
Y4-1 (B) or 4E-30 - Body ground | Always | 10 kΩ or higher |
OK | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
NG | REPAIR OR REPLACE HARNESS OR CONNECTOR |
