Toyota Yaris: Hood Lock Control Cable Assembly / Removal

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Door / Hatch / Hood Lock Control Cable Assembly / Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

2. REMOVE RADIATOR UPPER AIR GUIDE PLATE

Click here

3. REMOVE FRONT FENDER LINER LH

HINT:

Use the same procedure as for front fender liner RH.

Click here

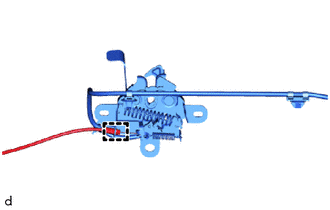

4. REMOVE HOOD LOCK ASSEMBLY

(a) w/ Engine Hood Courtesy Switch:

(1) Disconnect the connector.

*a

Clamp

*b

guide

(2) Disengage the clamps and guide.

(b) Remove the 3 bolts.

(c) Disengage the guide to disconnect the hood lock control cable assembly, and remove the hood lock assembly.

5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

7. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

(a) Disengage the guide.

(b) Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.

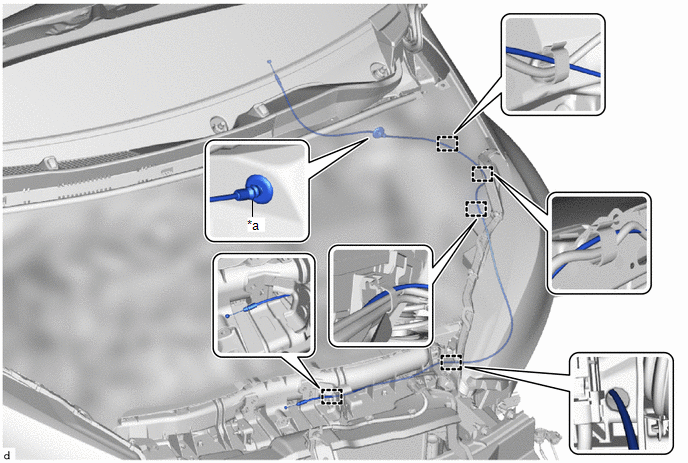

8. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

(a) Disconnect the hood lock control cable assembly from the clamps.

*a

Grommet

-

-

(b) Disengage the grommet.

(c) Pull the hood lock control cable assembly from the engine compartment to remove it.

    Components

    COMPONENTS ILLUSTRATION *1 RADIATOR UPPER AIR GUIDE PLATE *2 HOOD LOCK CONTROL CABLE ASSEMBLY *3 HOOD LOCK ASSEMBLY *4 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY N*m (kgf*cm, ft...

    Installation

    INSTALLATION PROCEDURE 1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY (a) Pass the hood lock control cable assembly into the engine compartment. (b) Engage the grommet...
