Toyota Yaris: Axle And Differential / Rear Differential Side Gear Shaft Oil Seal

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Drivetrain / Axle And Differential / Rear Differential Side Gear Shaft Oil Seal

Components

COMPONENTS

ILLUSTRATION

*1

REAR DRIVE SHAFT OIL SEAL

*2

REAR DIFFERENTIAL FILLER PLUG

*3

REAR DIFFERENTIAL DRAIN PLUG

*4

REAR DIFFERENTIAL CARRIER ASSEMBLY

*5

GASKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

MP grease

-

-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear drive shaft oil seal replacement are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Rear wheel alignment adjustment

Calibration

  • DTCs are stored
  • Slip indicator light illuminates
  • VSC disabled or malfunctions

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR DRIVE SHAFT ASSEMBLY

Click here

2. REMOVE REAR DRIVE SHAFT OIL SEAL

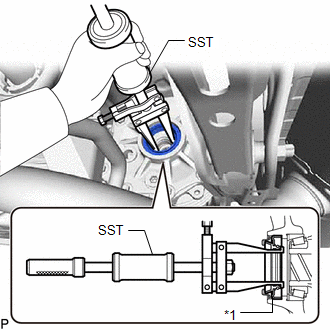

(a) Using SST, remove the rear drive shaft oil seal from the rear differential carrier assembly.

SST: 09308-00010

*1

Rear Drive Shaft Oil Seal

3. INSTALL REAR DRIVE SHAFT OIL SEAL

(a) Using SST and a hammer, install a new rear drive shaft oil seal into the rear differential carrier assembly.

SST: 09223-46011

SST: 09631-32020

NOTICE:

  • Install the rear drive shaft oil seal uniformly so that it is driven in straight.
  • Do not excessively tap in the rear drive shaft oil seal.
  • Do not damage the rear drive shaft oil seal.
  • Make sure to install the rear drive shaft oil seal as specified, otherwise a malfunction such as an oil leak may occur.

Standard Distance (A):

8.2 to 8.8 mm (0.323 to 0.346 in.)

*1

Rear Drive Shaft Oil Seal

(b) Apply a light coat of MP grease to the lip of the new rear drive shaft oil seal.

4. INSTALL REAR DRIVE SHAFT ASSEMBLY

Click here
