Toyota Yaris: Wiper And Washer System / Parts Location

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Wiper / Washer / Wiper And Washer System / Parts Location

PARTS LOCATION

ILLUSTRATION

*1

WINDSHIELD WIPER MOTOR ASSEMBLY

*2

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

*3

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- WIPER FUSE

- WASHER FUSE

- WIPER RELAY

*4

RAIN SENSOR

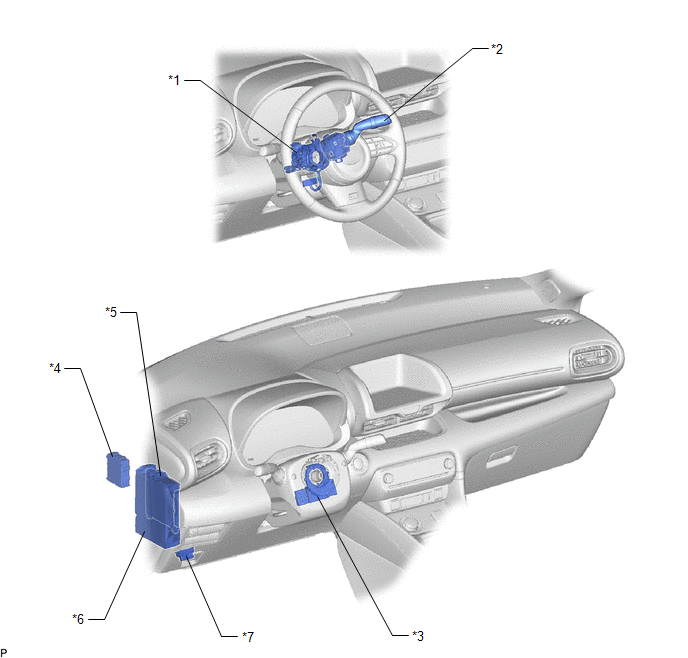

ILLUSTRATION

*1

STEERING WHEEL SWITCH HOUSING

*2

WINDSHIELD WIPER SWITCH ASSEMBLY

*3

STEERING SENSOR

*4

WINDSHIELD WIPER RELAY ASSEMBLY

*5

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*6

POWER DISTRIBUTION BOX ASSEMBLY

- WIPER RR FUSE

- ECU-IGR NO. 2 FUSE

*7

DLC3

-

-

    Precaution

    PRECAUTION PRECAUTION FOR WASHER NOZZLE ADJUSTMENT (a) Do not clean or adjust the washer nozzle with a safety pin, etc. because: (1) The washer nozzle tip is made of resin and may be damaged...

    System Diagram

    S..
