Toyota Yaris: Lighting System / Parts Location
PARTS LOCATION
ILLUSTRATION
| *A | w/ Toyota Safety Sense | - | - |
| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY RH |
| *5 | HEADLIGHT LENS SUB-ASSEMBLY LH | *6 | HEADLIGHT LENS SUB-ASSEMBLY RH |
| *7 | HEADLIGHT UNIT ASSEMBLY LH | *8 | HEADLIGHT UNIT ASSEMBLY RH |
| *9 | LIGHT CONTROL LED ECU LH | *10 | LIGHT CONTROL LED ECU RH |
| *11 | HEADLIGHT LEVELING MOTOR LH | *12 | HEADLIGHT LEVELING MOTOR RH |
| *13 | HEADLIGHT HOUSING SUB-ASSEMBLY LH (WIRE HARNESS LH) | *14 | HEADLIGHT HOUSING SUB-ASSEMBLY RH (WIRE HARNESS RH) |
| *15 | FOG LIGHT ASSEMBLY LH | *16 | FOG LIGHT ASSEMBLY RH |
| *17 | FORWARD RECOGNITION CAMERA | *18 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *19 | ECM | *20 | POWER STEERING ECU ASSEMBLY |
| *21 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *22 | NO. 1 ENGINE ROOM RELAY BLOCK |
| *23 | SEMICONDUCTOR POWER INTEGRATION ECU | - | - |

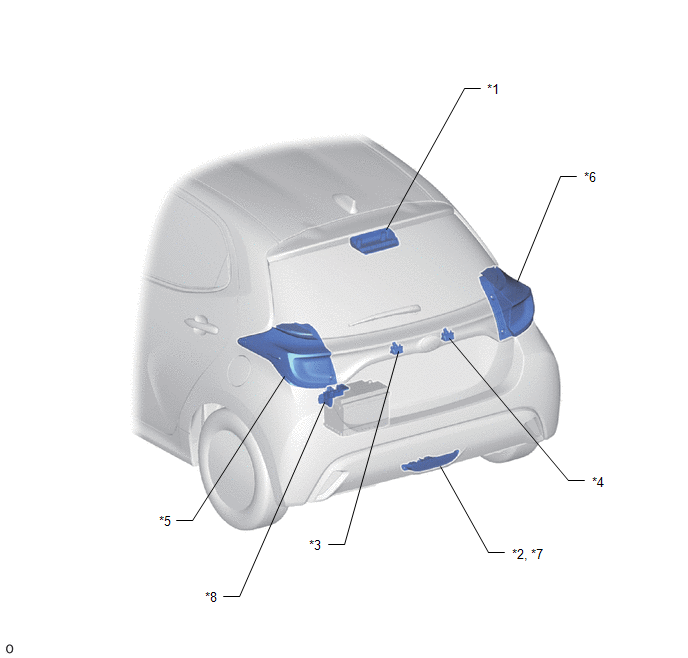

ILLUSTRATION
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | BACK-UP LIGHT LED |
| *3 | LICENSE PLATE LIGHT ASSEMBLY LH | *4 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT LENS AND BODY LH | *6 | REAR COMBINATION LIGHT LENS AND BODY RH |
| *7 | REAR FOG LIGHT LED | *8 | FUSIBLE LINK BLOCK ASSEMBLY |

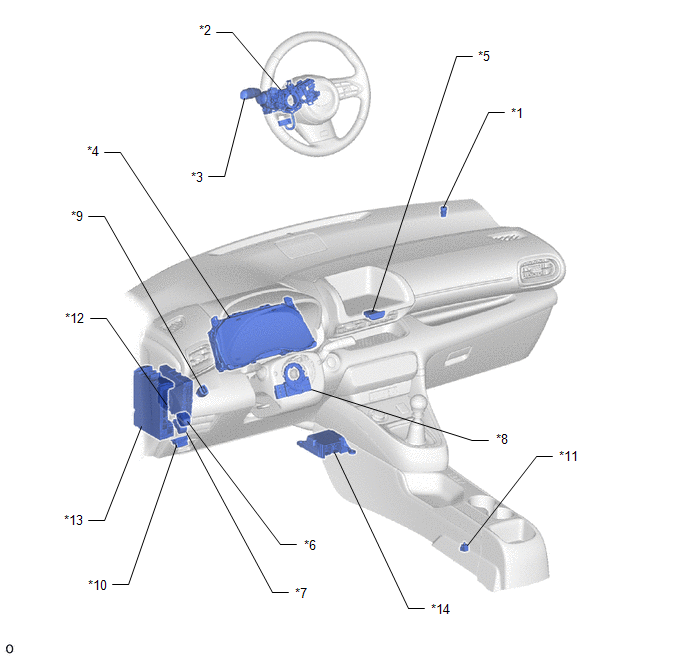

ILLUSTRATION
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | STEERING WHEEL SWITCH HOUSING |
| *3 | TURN SIGNAL SWITCH - DIMMER SWITCH - FOG LIGHT SWITCH - LIGHT CONTROL SWITCH | *4 | COMBINATION METER ASSEMBLY |
| *5 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *6 | HEADLAMP LEVELING SWITCH |
| *7 | AUTO HIGH BEAM SWITCH | *8 | STEERING SENSOR |
| *9 | STOP LIGHT SWITCH ASSEMBLY | *10 | DLC3 |
| *11 | PARKING BRAKE SWITCH ASSEMBLY | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | POWER DISTRIBUTION BOX ASSEMBLY - HAZ FUSE - METER-IGR FUSE - ECU-IGR NO. 1 FUSE - ECU-DCC NO. 2 FUSE - ECU-IGR NO. 2 FUSE - STOP FUSE - ECU-B NO. 2 FUSE - IGR-NO. 1 RELAY - IGR-NO. 2 RELAY | *14 | AIR BAG SENSOR ASSEMBLY |
Precaution
PRECAUTION PRECAUTION FOR BULB REPLACEMENT (a) Always prepare a new bulb for immediate replacement. While replacing the bulb, the lens may attract dust and moisture if the bulb is removed from the vehicle for a long time...
System Diagram
S..
