Toyota Yaris: Mirrors / Outside Mirrors
Mirror type
Flat type (driver’s side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its surface.

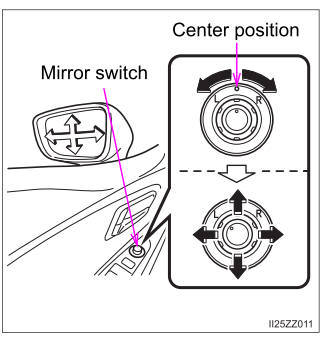

Power mirror adjustment
The ignition must be switched to ACC or ON position.
To adjust:
- Rotate the mirror switch to
the left or
right to choose
the left or right side mirror.
- Press the mirror switch in the
appropriate direction.
- After adjusting the mirror,
lock the control by rotating
the switch in the center position.

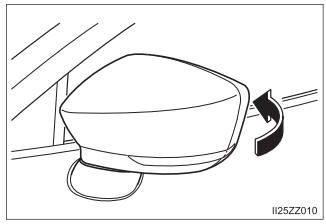

Folding mirror
Fold the outside mirror rearward until it is flush with the
vehicle.
WARNING
Be sure to look over your shoulder before changing lanes
Changing lanes without taking into account the actual distance of the
vehicle in the convex mirror is dangerous. You could have a serious accident.
What you see in the convex mirror is closer than it appears.
Always return the outside mirrors to the driving position before you
start driving
Driving with the outside mirrors folded in is dangerous. Your rear view
will
be restricted, and you could have an accident.
Rearview mirror adjustment
Before driving, adjust the rearview mirror to center on the
scene through the rear window.
Reducing glare from headlights
Adjust the mirror with the day/night lever in the day position...
