Toyota Yaris: Side Airbag Sensor (for Rear Pillar) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL NO. 1 SIDE AIRBAG SENSOR

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

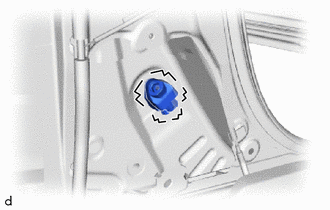

(c) Engage the claw to hold the No. 1 side airbag sensor.

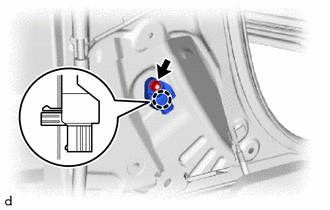

(d) Install the No. 1 side airbag sensor with the nut.

Torque:

7.8 N·m {80 kgf·cm, 69 in·lbf}

(e) Check that there is no looseness in the installation parts of the No. 1 side airbag sensor.

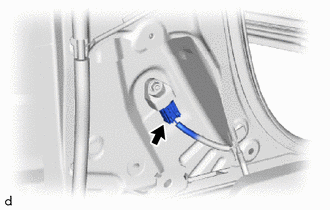

(f) Connect the airbag connector. NOTICE: When connecting any airbag connector, take care not to damage the airbag wire harness. HINT: Refer to How to Connect or Disconnect Airbag Connector: Click here

2. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

(a) Engage the guides to connect the front seat outer belt assembly.

(b) Temporarily install the 2 bolts.

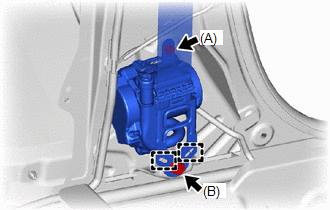

(c) Tighten the bolt (A) and then bolt (B).

Torque:

Bolt (A) :

12.5 N·m {127 kgf·cm, 9 ft·lbf}

Bolt (B) :

42 N·m {428 kgf·cm, 31 ft·lbf}

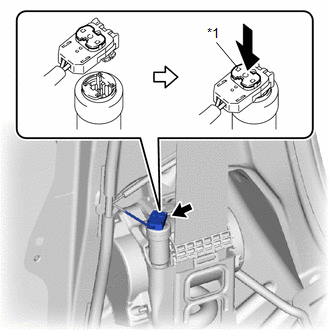

(d) Connect the pretensioner connector and lock the locking button as shown in the illustration. NOTICE: Securely lock the locking button.

*1 Locking Button

3. INSTALL QUARTER TRIM PANEL ASSEMBLY

Click here

4. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

Click here

5. INSTALL LAP BELT OUTER ANCHOR COVER

Click here

6. CONNECT FRONT DOOR SCUFF PLATE

Click here

7. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

8. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here

9. INSTALL REAR SEATBACK ASSEMBLY

Click here

10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

12. PERFORM DIAGNOSTIC SYSTEM CHECK

Click here

13. CHECK SRS WARNING LIGHT

Click here
