INSTALLATION

PROCEDURE

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

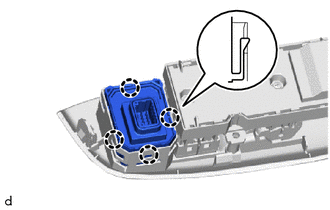

(a) Engage the claws to install the outer mirror switch assembly.

2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

Click here

    Inspection

    INSPECTION PROCEDURE 1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (a) Check the mirror select and surface adjust switch. (1) Turn the mirror select and surface adjust switch to the L position...
