Toyota Yaris: Heating / Air Conditioning / Front Blower Motor
Components
COMPONENTS

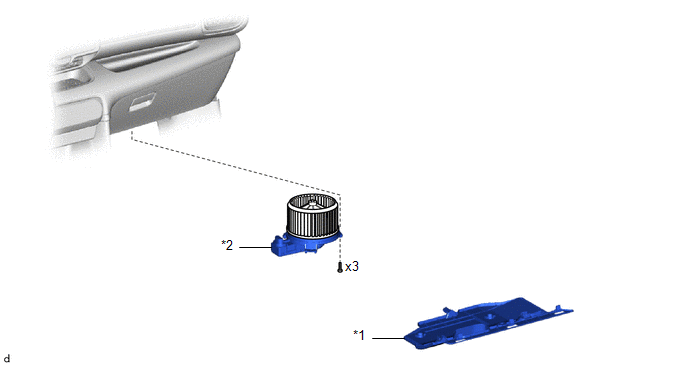

ILLUSTRATION
| *1 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *2 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
Removal
REMOVAL
PROCEDURE
1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

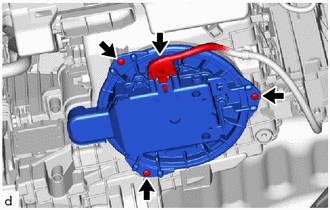

| (a) Disconnect the connector. |
|
(b) Remove the 3 screws and blower motor with fan sub-assembly.
Installation
INSTALLATION
PROCEDURE
1. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY
(a) Install the blower motor with fan sub-assembly with the 3 screws.
(b) Connect the connector.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
