Toyota Yaris: Transfer Assembly / Components
COMPONENTS

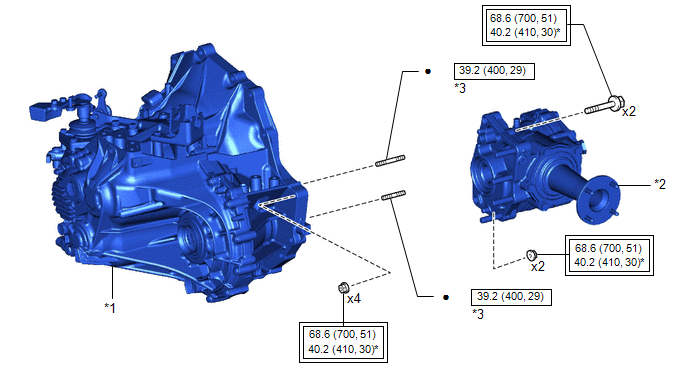

ILLUSTRATION
| *1 | MANUAL TRANSAXLE ASSEMBLY | *2 | TRANSFER ASSEMBLY |
| *3 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with SST and union nut wrench | ● | Non-reusable part |
| ★ | Precoated part | - | - |

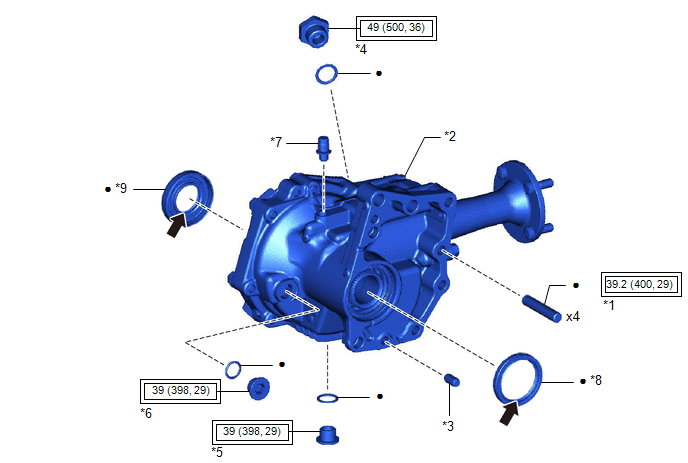

ILLUSTRATION
| *1 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | *2 | TRANSFER ASSEMBLY |
| *3 | TRANSFER CASE STRAIGHT PIN | *4 | NO. 1 TRANSFER CASE PLUG |
| *5 | TRANSFER DRAIN PLUG | *6 | TRANSFER FILLER PLUG |
| *7 | TRANSFER CASE BREATHER PLUG | *8 | TRANSFER CASE OIL SEAL |
| *9 | TRANSFER CASE OIL SEAL RH | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | MP Grease | ★ | Precoated part |

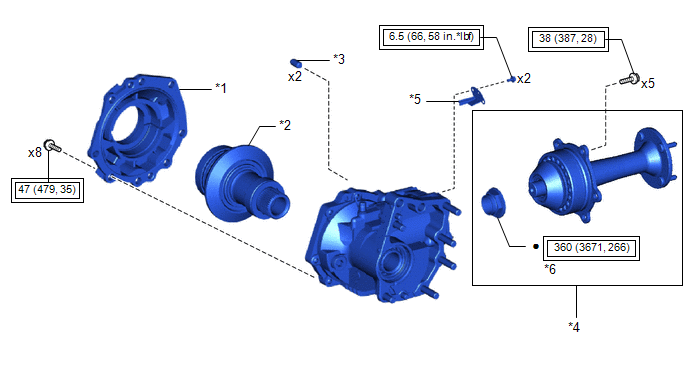

ILLUSTRATION
| *1 | NO. 1 TRANSFER CASE COVER | *2 | TRANSFER RING GEAR |
| *3 | TRANSFER CASE STRAIGHT PIN | *4 | REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY |
| *5 | BREATHER OIL DEFLECTOR | *6 | TRANSFER GEAR NUT |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

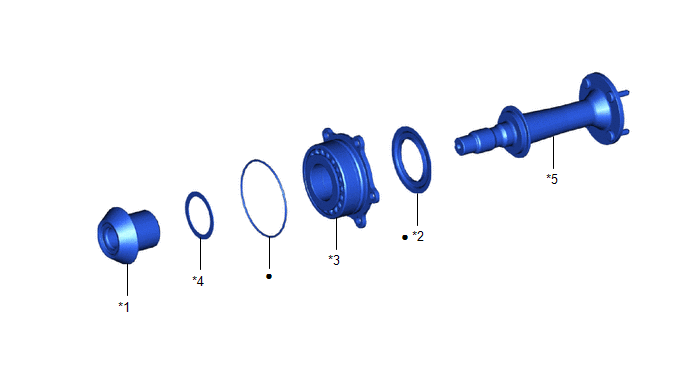

ILLUSTRATION
| *1 | TRANSFER DRIVEN PINION | *2 | REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR |
| *3 | FRONT TRANSFER DRIVEN PINION BEARING | *4 | TRANSFER OUTPUT SHAFT WASHER |
| *5 | TRANSFER OUTPUT SHAFT | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | RING GEAR MOUNTING CASE BEARING RH | *2 | RING GEAR MOUNTING CASE BEARING LH |
| *3 | SHAFT SNAP RING | *4 | TRANSFER RING GEAR |
| *5 | NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER | *6 | TRANSFER RING GEAR MOUNTING CASE |
| *7 | NO. 1 RING GEAR MOUNTING CASE WASHER | - | - |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transfer assembly removal/installation are shown below...
