Toyota Yaris: Transmission Control Cable / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Drivetrain / Ea67f (manual Transmission / Transaxle) / Transmission Control Cable / Components

COMPONENTS

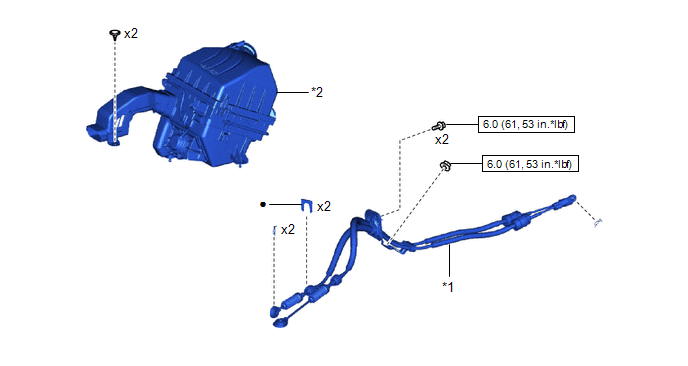

ILLUSTRATION

*1

TRANSMISSION CONTROL CABLE ASSEMBLY

*2

AIR CLEANER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

    Transmission Control Cable

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT HINT: When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating...
