Toyota Yaris: Front Seat Assembly / Components

*1

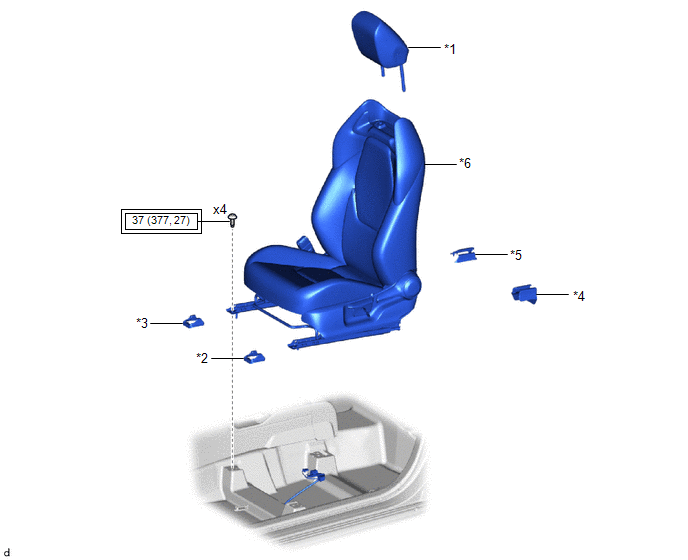

FRONT SEAT HEADREST ASSEMBLY

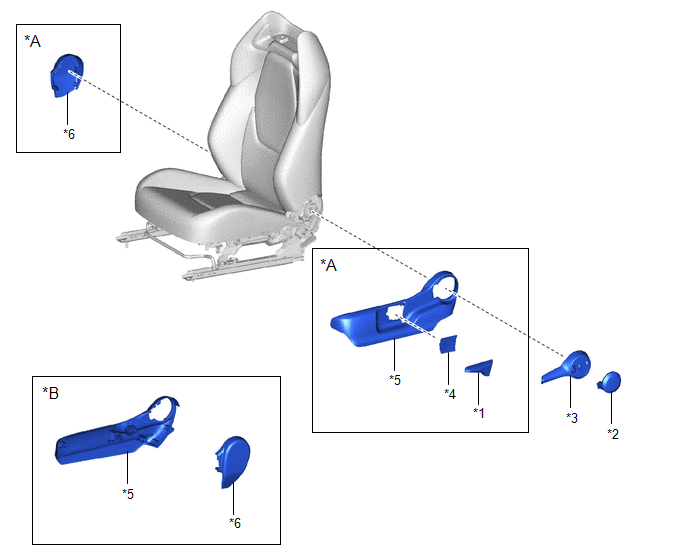

*2

FRONT OUTER SEAT TRACK BRACKET COVER

*3

FRONT INNER SEAT TRACK BRACKET COVER

*4

OUTER SEAT TRACK BRACKET COVER

*5

INNER SEAT TRACK BRACKET COVER

*6

FRONT SEAT ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

*A

for Driver Side

*B

for Front Passenger Side

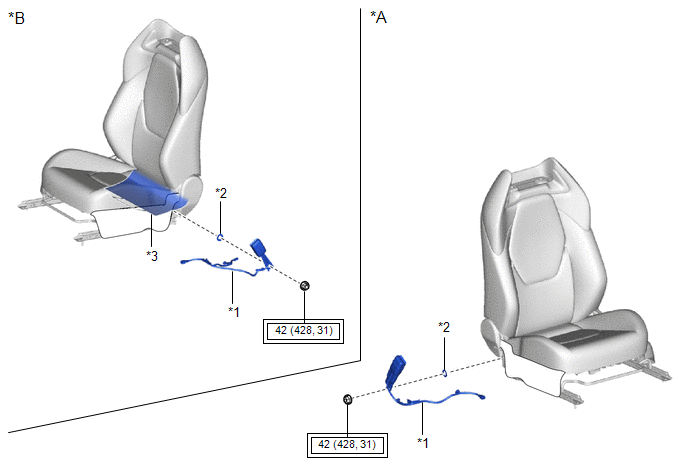

*1

FRONT SEAT INNER BELT ASSEMBLY

*2

FRONT SEAT BELT ANCHOR PLATE

*3

SEPARATE TYPE FRONT SEATBACK COVER

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT SEAT VERTICAL ADJUSTER HANDLE

*2

NO.1 RECLINING HINGE COVER

*3

RECLINING ADJUSTER RELEASE HANDLE

*4

SEAT ADJUSTER COVER CAP

*5

FRONT SEAT CUSHION SHIELD

*6

FRONT SEAT INNER CUSHION SHIELD

*1

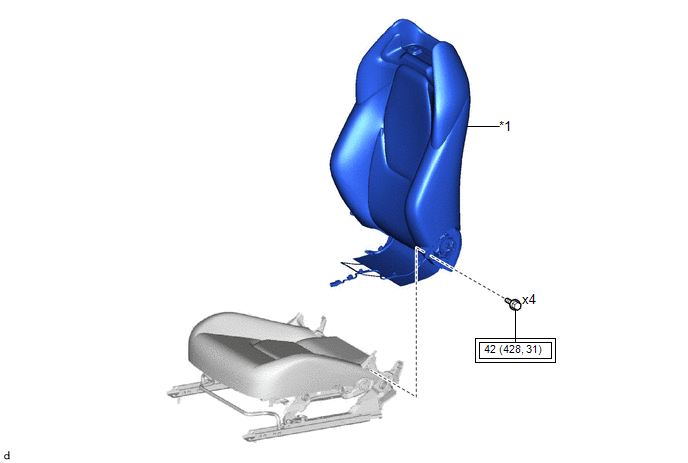

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

*A

for Sports Seat Type

*B

for Sporty Seat Type

*C

w/ Seat Heater

-

-

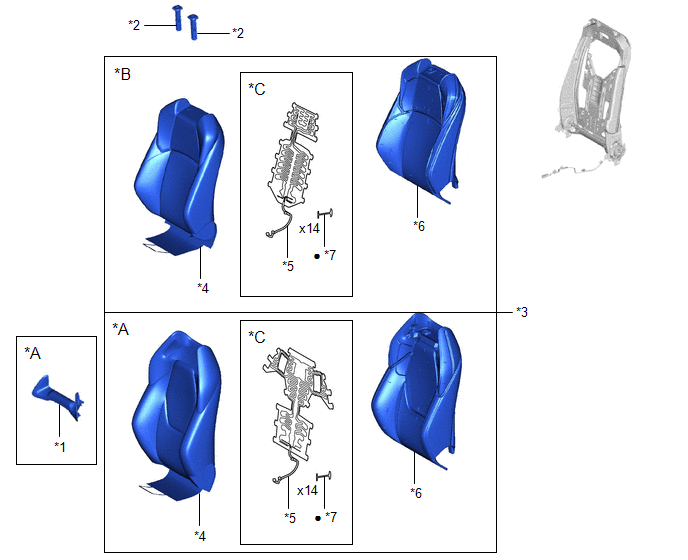

*1

FRONT SEATBACK BEZEL

*2

FRONT SEAT HEADREST SUPPORT ASSEMBLY

*3

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

*4

SEPARATE TYPE FRONT SEATBACK COVER

*5

FRONT SEATBACK HEATER ASSEMBLY

*6

SEPARATE TYPE FRONT SEATBACK PAD

*7

TAG PIN

-

-

●

Non-reusable part

-

-

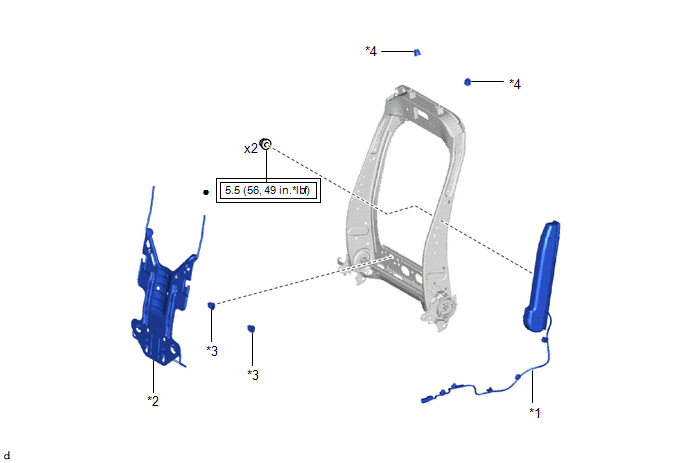

*1

FRONT SEAT AIRBAG ASSEMBLY

*2

FRONT SEATBACK SPRING SUB-ASSEMBLY

*3

FRONT SEATBACK EDGE PROTECTOR

*4

FRONT SEATBACK HOOK

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

*A

for Sporty Seat Type

*B

for Sports Seat Type

*C

w/ Seat Heater System

*D

for Front Passenger Side

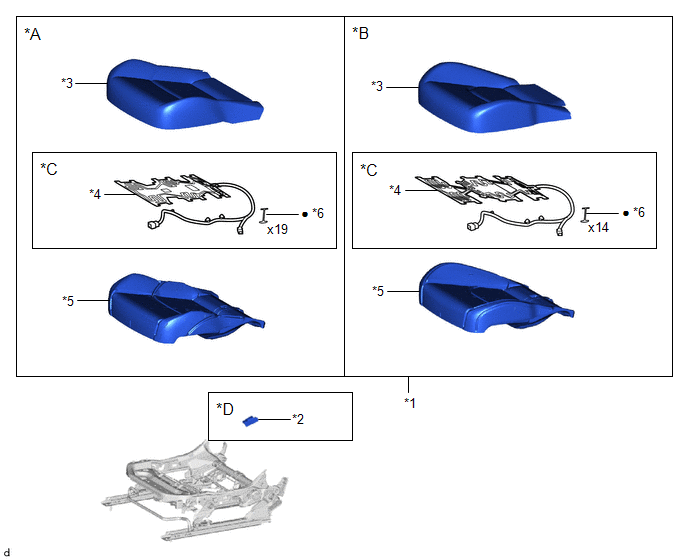

*1

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

*2

CONNECTOR HOLDER

*3

SEPARATE TYPE FRONT SEAT CUSHION COVER

*4

FRONT SEAT CUSHION HEATER ASSEMBLY

*5

SEPARATE TYPE FRONT SEAT CUSHION PAD

*6

TAG PIN

●

Non-reusable part

-

-

*A

for Driver Side

*B

for Front Passenger Side

*C

w/o Seat Heater System

-

-

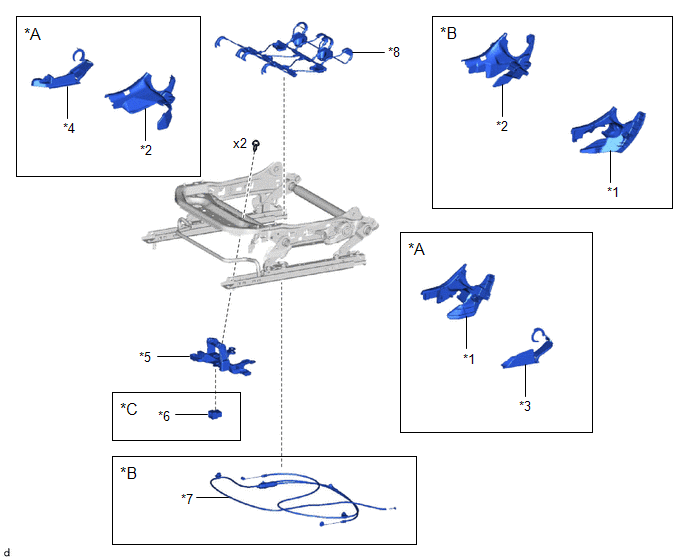

*1

RECLINING ADJUSTER INSIDE COVER LH

*2

RECLINING ADJUSTER INSIDE COVER RH

*3

FRONT SEAT LOWER CUSHION SHIELD LH

*4

FRONT SEAT LOWER CUSHION SHIELD RH

*5

FRONT SEAT CUSHION WIRE HARNESS HOLDER

*6

WIRING HARNESS CONNECTOR

*7

SEAT TRACK CONTROL CABLE ASSEMBLY

*8

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

*A

for Driver Side

-

-

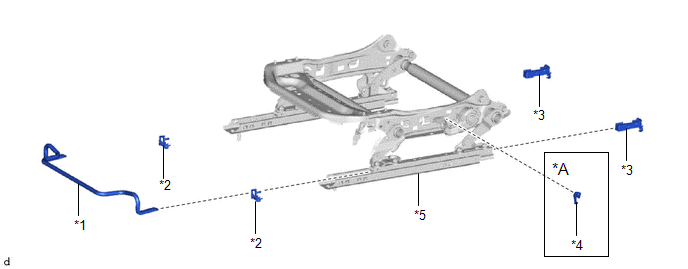

*1

SEAT TRACK ADJUSTING HANDLE

*2

SEAT TRACK UPPER RAIL COVER

*3

REAR UPPER SEAT TRACK COVER

*4

VERTICAL ADJUSTER BRACKET COVER

*5

FRONT SEAT ADJUSTER ASSEMBLY

-

-
