Toyota Yaris: Theft Deterrent / Keyless Entry / Certification Ecu
Components
COMPONENTS
ILLUSTRATION
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the certification ECU (smart key ECU assembly) removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replacement Part or Procedure | Necessary Procedures | Effects / Inoperative when not performed | Link |
|---|---|---|---|
| Certification ECU (smart key ECU assembly) | Code registration |
|
|
PROCEDURE
1. REMOVE ECU INTEGRATION BOX RH
Click here
2. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

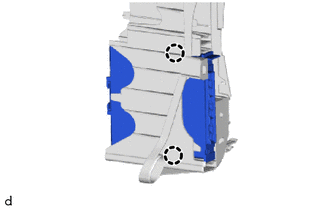

| (a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the certification ECU (smart key ECU assembly) as shown in the illustration. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
NOTICE:
Before replacing the certification ECU (smart key ECU assembly), refer to Registration.
Click here
PROCEDURE
1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(a) Engage the 2 claws to install the certification ECU (smart key ECU assembly).
2. INSTALL ECU INTEGRATION BOX RH
Click here
