Toyota Yaris: Supplemental Restraint Systems / Airbag Cut-off Switch

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Interior / Supplemental Restraint Systems / Airbag Cut-off Switch

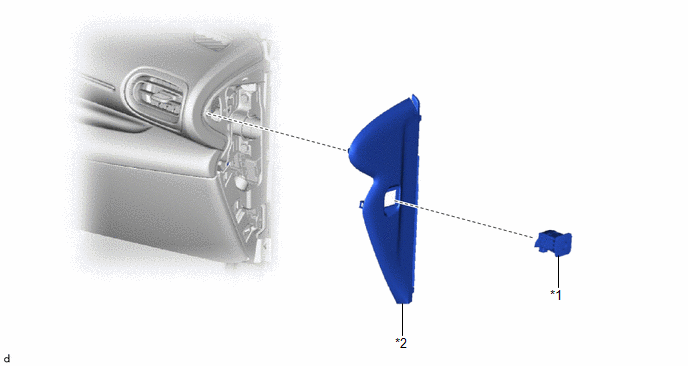

Components

COMPONENTS

ILLUSTRATION

*1

AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY

*2

NO. 2 INSTRUMENT SIDE PANEL

Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT SIDE PANEL

Click here

2. REMOVE AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY

(a) Disengage the 2 claws to remove the airbag cut off switch cylinder sub-assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 (PMC+) - 1 (PMC-)

Cut off switch in ON position

360 to 440 Ω

2 (PMC+) - 1 (PMC-)

Cut off switch in OFF position

90 to 110 Ω

If the result is not as specified, replace the airbag cut off switch cylinder sub-assembly.

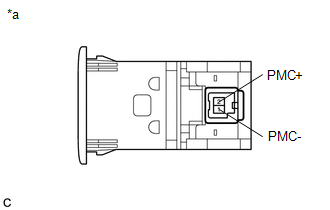

*a

Component without harness connected

(Airbag Cut Off Switch Cylinder Sub-assembly)

Installation

INSTALLATION

PROCEDURE

1. INSTALL AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY

(a) Engage the 2 claws to install the airbag cut off switch cylinder sub-assembly.

2. INSTALL NO. 2 INSTRUMENT SIDE PANEL

Click here
