ADJUSTMENT
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after completing the rear wheel alignment procedure are shown below.
Necessary Procedures After Procedure Performed Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
Rear wheel alignment adjustment | ECU Data Initialization | Active torque split AWD system |
|
Calibration |
|
|
PROCEDURE
1. INSPECT TIRES
Click here
2. MEASURE VEHICLE HEIGHT
Click here
3. INSPECT CAMBER
NOTICE:
Inspect while the vehicle is unloaded.

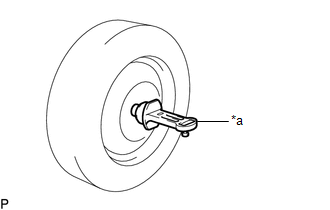

(a) Install a camber-caster-kingpin gauge. |
|
(b) Inspect the camber.
Camber (Unloaded Vehicle):
Camber Inclination | Right-left Difference |
---|---|
-1°55' +/- 0°45' (-1.92° +/- 0.75°) | 0°45' (0.75°) or less |
HINT:
Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
4. INSPECT TOE-IN
NOTICE:
Inspect while the vehicle is unloaded.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.
(b) Release the parking brake and move the shift lever to neutral.
(c) Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)

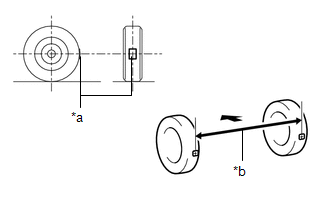

(d) Put tread center marks on the rearmost points of the rear wheels and measure the distance between the marks (dimension B).
*a | Tread Center Mark |
*b | Dimension B |
![]() | Front of the Vehicle |
(e) Slowly push the vehicle straight ahead to cause the rear wheels to rotate 180°. Use the rear tire valve as a reference point.
HINT:
Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step A again.

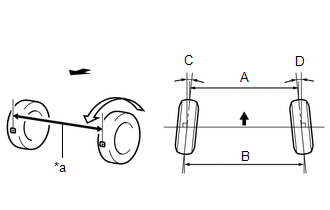

(f) Measure the distance between the tread center marks on the front of the rear wheels (dimension A).
*a | Dimension A |
![]() | Front of the Vehicle |
Toe-in (Unloaded Vehicle):
Specified Condition | Right-left Difference |
---|---|
C + D: 0°12' +/- 0°11' (0.2° +/- 0.18°) | - |
B - A: 2.2 +/- 2.0 mm (0.0866 +/- 0.0787 in.) | 1.0 mm (0.0394 in.) or less |
HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the rear suspension toe adjust cam sub-assembly.
5. ADJUST TOE-IN

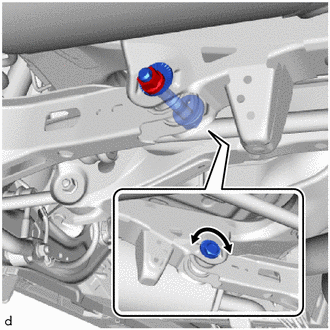

(a) Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side). NOTICE: Hold the rear suspension toe adjust cam sub-assembly while rotating the nut. |
|
(b) Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.
![]() | Front of the Vehicle |

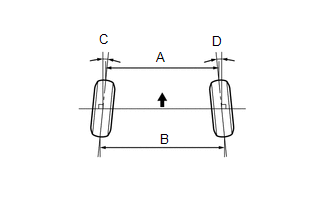

Toe-in (Unloaded Vehicle):
Specified Condition | Right-left Difference |
---|---|
C + D: 0°12' +/- 0°11' (0.2° +/- 0.18°) | - |
B - A: 2.2 +/- 2.0 mm (0.0866 +/- 0.0787 in.) | 1.0 mm (0.0394 in.) or less |
HINT:
(c) Tighten the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
Torque:
100 N·m {1020 kgf·cm, 74 ft·lbf}
NOTICE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
6. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
7. INSPECT AND ADJUST HEADLIGHT AIMING
HINT:
These procedures are to be performed when suspension or tires components have been removed or replaced.
Click here
8. PERFORM CALIBRATION
Click here
9. PERFORM ECU DATA INITIALIZATION
Click here
WARNING
When removing the fuel-filler cap, loosen the cap slightly and wait for any hissing to stop, then remove it
Fuel spray is dangerous. Fuel can burn skin and eyes and cause illness if ingested. Fuel spray is released when there is pressure in the fuel tank and the fuel-filler cap is removed too quickly.
