Toyota Yaris: Front Passenger Airbag Assembly / Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the instrument panel passenger without door airbag assembly removal/installation are shown below.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
Click here
3. REMOVE NO. 2 INSTRUMENT PANEL WIRE
| (a) Disengage the clamp. |
|

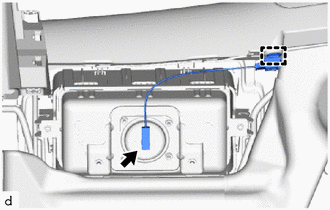

(b) Disconnect the airbag connector to remove the No. 2 instrument panel wire from the instrument panel passenger without door airbag assembly.
NOTICE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Click here
4. REMOVE INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY
 | Deployment Side |
- When storing the instrument panel passenger without door airbag assembly, keep the airbag deployment side facing upward.
- If the airbag deploys for any reason, it may cause a serious accident.

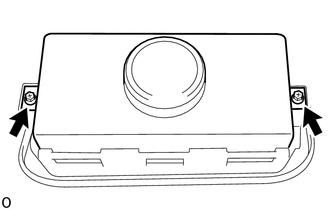

| (a) Remove the 2 screws. |
|

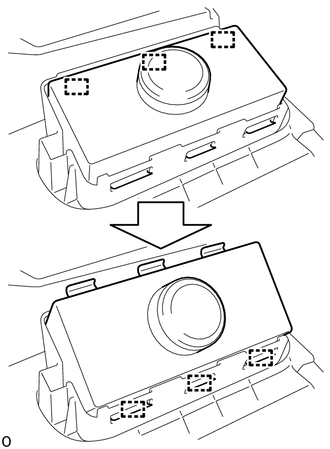

| (b) Lean the instrument panel sub-assembly and disengage the hooks. |
|
(c) Disengage the hooks to remove the instrument panel passenger without door airbag assembly from the instrument panel sub-assembly.
Components
C..
Installation
INSTALLATION PROCEDURE 1. INSTALL INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY (a) Engage the hooks.
(b) Push in the instrument panel passenger without door airbag assembly to engage the hooks to the instrument panel sub-assembly...
