Toyota Yaris: Air Conditioning Pressure Sensor / Removal

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Vehicle Interior / Heating / Air Conditioning / Air Conditioning Pressure Sensor / Removal

REMOVAL

PROCEDURE

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click here

2. REMOVE AIR CONDITIONER PRESSURE SENSOR

(a) Disconnect the connector.

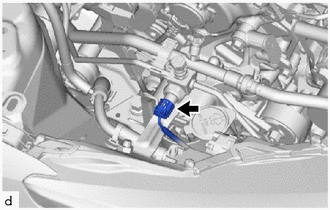

(b) Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.

*a	Turn
*b	Hold

On-vehicle Inspection

ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT AIR CONDITIONING PRESSURE SENSOR (a) Check the wire harness. (1) Disconnect the A51 air conditioner pressure sensor connector...

Installation

INSTALLATION PROCEDURE 1. INSTALL AIR CONDITIONER PRESSURE SENSOR (a) Remove the vinyl tape from the No. 2 air conditioner tube and accessory assembly...
