Components

COMPONENTS

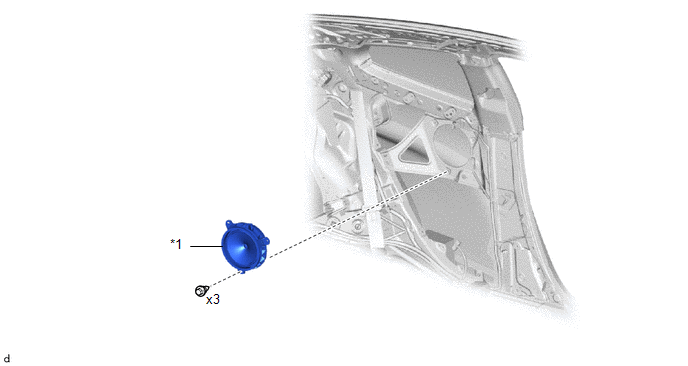

ILLUSTRATION

*1

REAR SPEAKER ASSEMBLY

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE QUARTER TRIM PANEL ASSEMBLY

Click here

2. REMOVE REAR SPEAKER ASSEMBLY

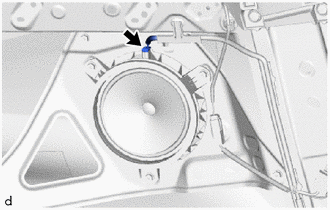

(a) Disconnect the connector.

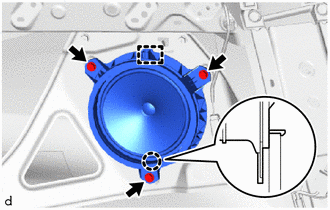

(b) Remove the 3 screws.

(c) Disengage the claw and hook to remove the rear speaker assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SPEAKER ASSEMBLY (for RH Side)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

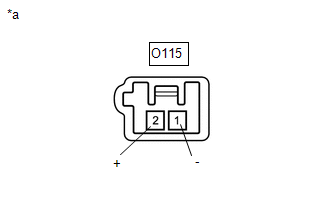

O115-2 (+) - O115-1 (-)

Always

4 Ω

If the result is not as specified, replace the rear speaker assembly.

*a

Component without harness connected

(Rear Speaker Assembly)

2. INSPECT REAR SPEAKER ASSEMBLY (for LH Side)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O114-2 (+) - O114-1 (-)

Always

4 Ω

If the result is not as specified, replace the rear speaker assembly.

*a

Component without harness connected

(Rear Speaker Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL REAR SPEAKER ASSEMBLY

(a) Engage the hook and claw to install the rear speaker assembly.

(b) Install the 3 screws.

(c) Connect the connector.

2. INSTALL QUARTER TRIM PANEL ASSEMBLY

Click here
