PRECAUTION

CAUTION:

Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts). When inspecting a vehicle that has been involved in a collision, be sure to check all of the seat belt systems regardless of whether or not the system was activated in the collision. Replace any damaged or malfunctioning systems.

ROAD TEST (IN SAFE AREA)

CAUTION:

Conduct this test in a safe area.

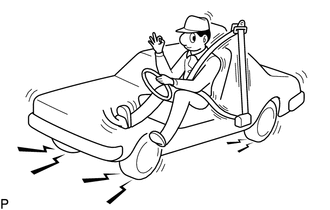

(a) Fasten the front seat belts.

(b) Drive the vehicle at 16 km/h (10 mph) and firmly depress the brake pedal. Check that the front seat outer belt assemblies lock and cannot be extended.

If a front seat outer belt assembly does not lock, replace it.

Click here

HINT:

Inspect the seat belt assembly before installing it.

Click here

    Front Seat Outer Belt Assembly

    ..

    Components

    COMPONENTS ILLUSTRATION *1 REAR SEATBACK ASSEMBLY *2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY *3 REAR SEAT CUSHION LOCK HOOK - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...
