Components
COMPONENTS
ILLUSTRATION

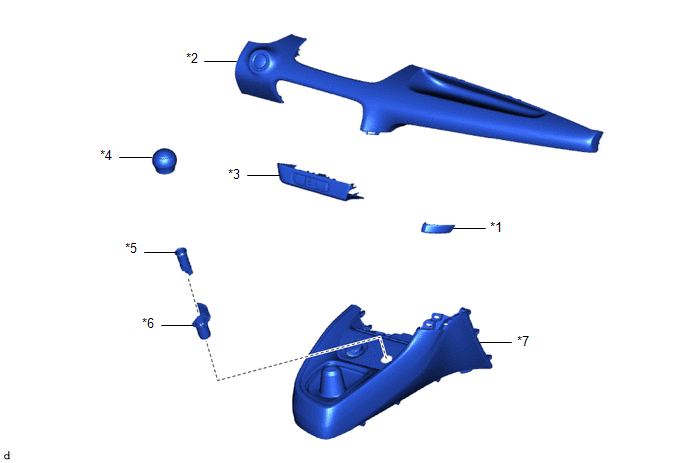

*1 | CENTER LOWER INSTRUMENT COVER | *2 | LOWER INSTRUMENT PANEL FINISH PANEL |
*3 | SWITCH HOLE BASE SUB-ASSEMBLY | *4 | SHIFT LEVER KNOB SUB-ASSEMBLY |
*5 | NO. 1 POWER OUTLET SOCKET ASSEMBLY | *6 | NO. 1 POWER OUTLET SOCKET COVER |
*7 | CONSOLE BOX ASSEMBLY | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE CENTER LOWER INSTRUMENT COVER
Click here
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
Click here
3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY
Click here
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Click here
5. REMOVE CONSOLE BOX ASSEMBLY
Click here
6. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

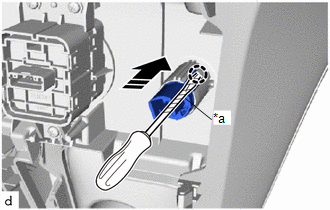

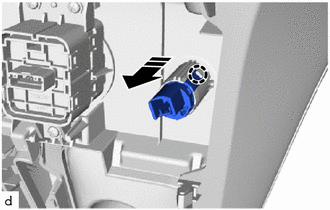

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw to remove the No. 1 power outlet socket assembly as shown in the illustration.
*a | Protective Tape |
Remove in this Direction |
7. REMOVE NO. 1 POWER OUTLET SOCKET COVER

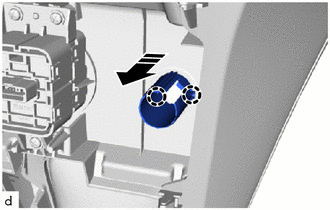

(a) Disengage the claws to remove the No. 1 power outlet socket cover as shown in the illustration.
Remove in this Direction |
Installation
INSTALLATION
PROCEDURE
1. INSTALL NO. 1 POWER OUTLET SOCKET COVER

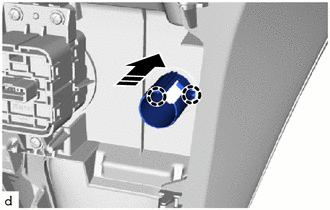

(a) Engage the claws to install the No. 1 power outlet socket cover as shown in the illustration.
Install in this Direction |
2. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY
(a) Engage the claw to install the No. 1 power outlet socket assembly as shown in the illustration.
Install in this Direction |
3. INSTALL CONSOLE BOX ASSEMBLY
Click here
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Click here
5. INSTALL SWITCH HOLE BASE SUB-ASSEMBLY
Click here
6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
Click here
7. INSTALL CENTER LOWER INSTRUMENT COVER
Click here
