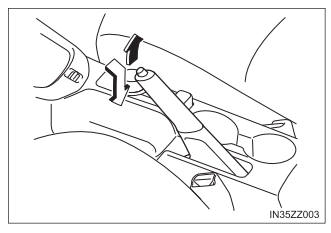

Toyota Yaris: Brake System / Parking Brake

Foot Brake

This vehicle has power-assisted brakes that adjust automatically through normal use. Should power-assist fail, you can stop by applying greater force than normal to the brake pedal...

Warning Light

T..

Other information:

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual: Terminals Of Ecu

TERMINALS OF ECU COMBINATION METER ASSEMBLY (a) Measure the voltage and resistance and check for pulses according to the value(s) in the table below. Terminal No. (Symbol) Terminal Description Condition Specified Condition H6-1 (B) - Body ground Auxiliary battery Ignition switch off 11 to 14 V H6-9 (CANH) CAN communication line - - H6-10 (MSCL) Local bus communication line - - H6-11 (TX1-) - Body ground Outside temperature sensor signal - - H6-13 (FR2) - H6-24 (FE&B) Fuel level signal Ignition switch ON, fuel level full → low (fuel level warning light on) Pulse generation (See waveform 3) H6-14 (FV) - Body ground Fuel sender gauge (Power source) Ignition switch ON Pulse generation (See waveform 1) H6-15 (MSTI) - Body ground Steering pad switch signal Ignition switch ON, up, down, right and left switches on steering pad switch not pushed 4...

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual: Parts Location

PARTS LOCATION ILLUSTRATION *1 FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH *2 FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH *3 FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH *4 FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH *5 BACK DOOR OPENER SWITCH ASSEMBLY *6 BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH ILLUSTRATION *1 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *2 DOOR CONTROL SWITCH *3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO...
