Toyota Yaris: Storage Compartments / Glove Compartment

Toyota Yaris XP210 (2020-2025) Owner's Manual / Interior Features / Interior Equipment / Storage Compartments / Glove Compartment

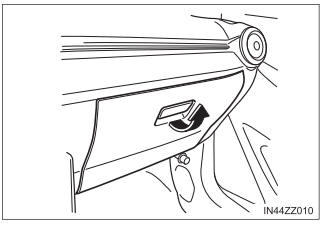

To open the glove compartment, pull the latch toward you.

To close the glove compartment, firmly press in the center of the glove compartment lid.

Toyota Yaris. Glove Compartment
