Toyota Yaris: Maintenance and Care / Essential Information Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing
a tire, or doing some kind of maintenance such as car washing. In particular,
wear thick work gloves such as cotton gloves when touching
areas that are difficult to see while inspecting or working on your vehicle.
Doing inspections or procedures with your bare hands could
cause injury.
If you are unsure about any procedure this manual describes, we
strongly urge you to have a reliable and qualified service shop perform the
work, preferably your Toyota dealer.
Factory-trained Toyota technicians and genuine Toyota parts are best
for your vehicle. Without this expertise and the parts that have been
designed and made especially for your Toyota, inadequate, incomplete, and
insufficient servicing may result in problems. This could
lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult your Toyota dealer.
To continue warranty eligibility and to protect your investment, it is
your responsibility to properly maintain your vehicle according to factory
recommended schedules outlined in this manual. Keep a copy of
the repair order. It proves that the maintenance that has been performed is
under warranty coverage. If any problem should arise while
your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
This evidence may consist of the following:
- The Maintenance Log, found within the Warranty and Maintenance
Guide, must be completely filled out showing mileage, repair order
number, date for each service, and signed by a qualified automotive
service technician who service vehicles.
- Original copies of repair orders or other receipts that include the
mileage and date the vehicle was serviced. Each receipt should be
signed by a qualified automotive service technician.
- For self maintenance, a statement that you completed the maintenance
yourself, displaying mileage and the date the work was performed. Also,
receipts for the replacement parts (fluid, filters, etc.)
indicating the date and mileage must accompany this statement.
Claims against the warranty resulting from lack of maintenance, as
opposed to defective materials or authorized Toyota workmanship, will
not be honored.
Any auto repair shop using parts equivalent to your Toyota’s original
equipment may perform maintenance. But we recommend that it
always be done by your Toyota dealer using genuine Toyota parts.
Selecting “Maintenance Monitor” enables the system to notify you of
your vehicle’s approaching inspection/servicing period.

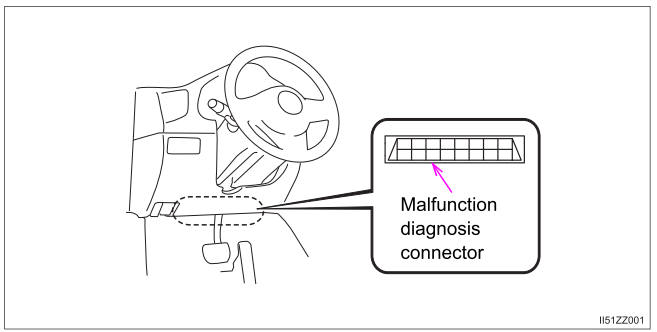

The malfunction diagnosis connector is designed exclusively for connecting
the specially designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction
diagnosis devices for servicing. If any device other than the
malfunction diagnosis device is connected, it may affect the vehicle’s
electrical devices or lead to damage such as battery depletion.
If you elect to perform maintenance yourself or have your vehicle serviced at
a location other than your Toyota dealer, Toyota requires that all fluids, parts
and materials must meet Toyota standards for durability and performance as
described in this manual.
Maintenance Monitor
Select the icon on the home
screen to display the “Applications” screen.
Select “Maintenance” to display the maintenance list screen...
Other information:
Parts LocationPARTS LOCATION ILLUSTRATION
*1 CANISTER (CHARCOAL CANISTER ASSEMBLY) *2 VACUUM REGULATING VALVE ASSEMBLY *3 FUEL TANK CAP ASSEMBLY *4 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *5 PURGE VALVE (PURGE VSV) *6 E...
TERMINALS OF ECU CHECK STEREO COMPONENT EQUALIZER ASSEMBLY
Terminal No. (Symbol) Terminal Description Condition Specified Condition O131-15(+B) - O131-30(GND) Power source Always 11 to 14 V O131-29(IGP) - O131-30(GND) Power source (IG) Ignition switch ON 11 to 14 V O131-14(ACC) - O131-30(GND) Power source (ACC) Ignition switch ACC 11 to 14 V O131-30(GND) - Body ground Ground Always Below 1 Ω O132-1(MC1+) - O131-30(GND) Active noise control microphone input signal Active noise control microphone LH tapped with finger Pulse generation O132-5(MC1-) - O131-30(GND) Active noise control microphone input signal Always Below 1 Ω O132-2(MC2+) - O131-30(GND) Active noise control microphone input signal Active noise control microphone RH tapped with finger Pulse generation O132-6(MC2-) - O131-30(GND) Active noise control microphone input signal Always Below 1 Ω O131-3(NEI) - O131-30(GND) Engine pulse signal Idling with warm engine Pulse generation (See waveform 1) O131-24(FLI-) Active noise control microphone output signal - - O131-9(FLI+) Active noise control microphone output signal - - O131-23(FRI-) Active noise control microphone output signal - - O131-8(FRI+) Active noise control microphone output signal - - O131-5(RRI+) Active noise control microphone output signal - - O131-20(RRI-) Active noise control microphone output signal - - O131-6(RLI+) Active noise control microphone output signal - - O131-21(RLI-) Active noise control microphone output signal - - O131-7(ASG1) Shield ground - - O131-22(ASG2) Shield ground - - O131-12(FR+) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-27(FR-) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-13(FL+) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-28(FL-) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-10(RR+) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131+25(RR-) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-11(RL+) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-28(RL-) - O131-30(GND) Sound signal Active noise control system operating Pulse generation O131-1(CANH) CAN communication signal - - O131-16(CANL) CAN communication signal - - (a) Waveform 1 HINT: The oscilloscope waveform shown in the illustration is an example for reference only...
