Toyota Yaris: G16e-gts (cooling) / Cooling System
On-vehicle Inspection
ON-VEHICLE INSPECTION
CAUTION / NOTICE / HINT
CAUTION:

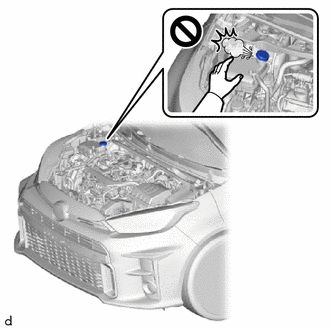

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
PROCEDURE
1. INSPECT FOR COOLANT LEAK
CAUTION:
Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
(a) Remove the radiator cap sub-assembly.
| (b) Fill the radiator reserve tank assembly with engine coolant, and then install a radiator cap tester. |
|
(c) Warm up the engine.
(d) Pump the radiator cap tester to 123 kPa (1.3 kgf/cm2, 18 psi), and then check that the pressure does not drop.
- If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.
- If there are no signs of external engine coolant leaks, check the heater core, cylinder block sub-assembly and cylinder head sub-assembly.
(e) Remove the radiator cap tester.
(f) Install the radiator cap sub-assembly.
2. INSPECT RADIATOR RESERVE TANK ENGINE COOLANT LEVEL
| (a) Check that the engine coolant level is between the MIN line and MAX line when the engine is cold. NOTICE: Do not substitute plain water for engine coolant. If the engine coolant level is low, check for leaks and add engine coolant to the MAX line. |
|
3. INSPECT ENGINE COOLANT QUALITY
CAUTION:
Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
(a) Remove the radiator cap sub-assembly.
(b) Check that there are no excessive deposits of rust or scale around the radiator cap sub-assembly and engine coolant hole. Also, the engine coolant should be free of oil.
If excessively dirty, clean the engine coolant passage and replace the engine coolant.
(c) Install the radiator cap sub-assembly.
