Toyota Yaris: Input Shaft / Components
COMPONENTS

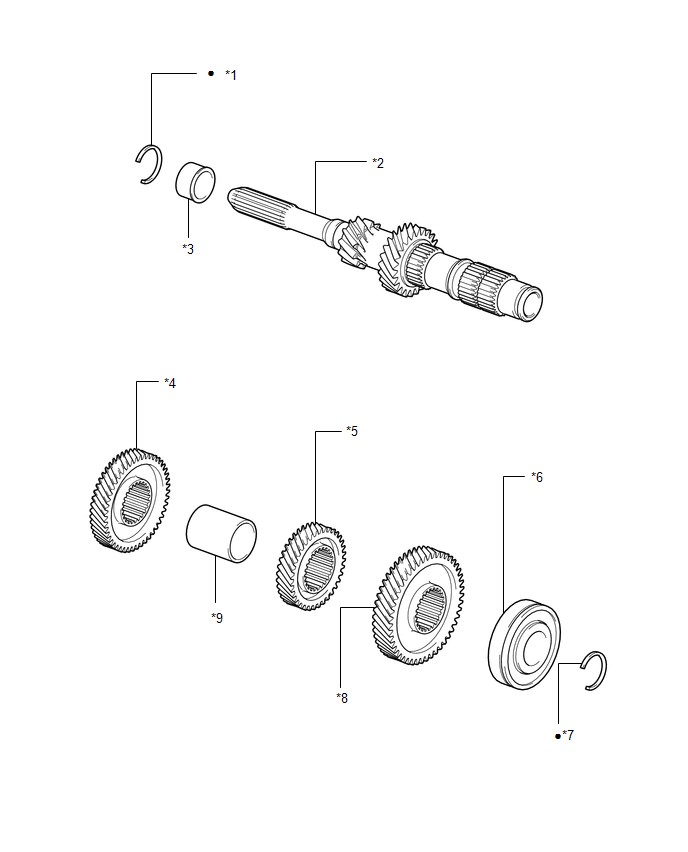

ILLUSTRATION
*1 | INPUT SHAFT SNAP RING | *2 | INPUT SHAFT |
*3 | INPUT SHAFT FRONT BEARING INNER RACE | *4 | 4TH DRIVE GEAR |
*5 | 3RD DRIVE GEAR | *6 | INPUT SHAFT REAR RADIAL BALL BEARING |
*7 | INPUT SHAFT REAR BEARING SHAFT SNAP RING | *8 | 6TH DRIVE GEAR |
*9 | SPACER | - | - |
● | Non-reusable part | - | - |
DISASSEMBLY PROCEDURE 1. REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING (a) Using a snap ring expander, remove the input shaft rear bearing shaft snap ring from the input shaft...
