Toyota Yaris: Front Seatback Heater / Components
COMPONENTS
ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT VERTICAL ADJUSTER HANDLE | *2 | NO.1 RECLINING HINGE COVER |
| *3 | RECLINING ADJUSTER RELEASE HANDLE | *4 | SEAT ADJUSTER COVER CAP |
| *5 | FRONT SEAT CUSHION SHIELD | *6 | FRONT SEAT INNER CUSHION SHIELD |

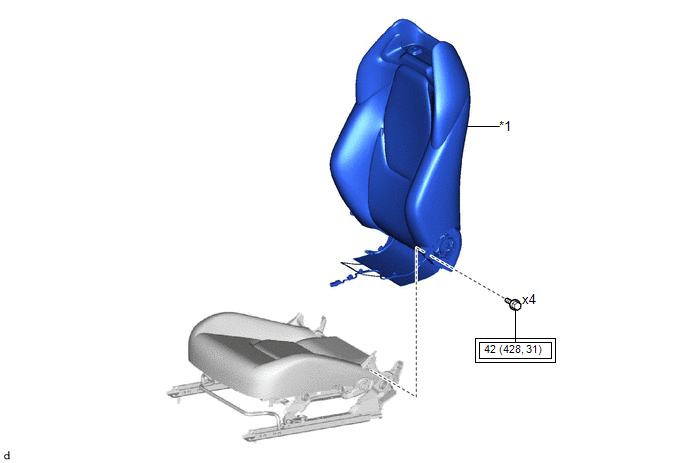

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | for Sports Seat Type | *B | for Sporty Seat Type |
| *1 | FRONT SEATBACK BEZEL | *2 | FRONT SEAT HEADREST SUPPORT ASSEMBLY |
| *3 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD | *4 | SEPARATE TYPE FRONT SEATBACK COVER |
| *5 | FRONT SEATBACK HEATER ASSEMBLY | *6 | SEPARATE TYPE FRONT SEATBACK PAD |
| *7 | TAG PIN | - | - |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here
Wear protective gloves. Sharp areas on the parts may injure your hands...
