Toyota Yaris: Warning/Indicator Lights / Combination Meter
Analog Speedometer Type (With Tachometer)

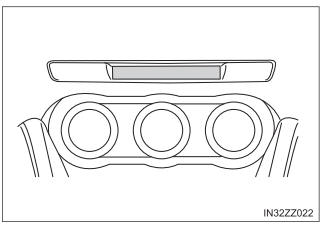

Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
Master
Warning Light
Brake
System Warning Light
ABS
Warning Light
Charging System Warning Light
Engine
Oil Warning Light
Check
Engine Light
High
Engine Coolant Temperature Warning Light
Automatic Transaxle Warning Light
Power
Steering Malfunction Indicator Light
Air
Bag/Front Seat Belt Pretensioner System Warning Light
LED
Headlight Warning Light
Low
Fuel Warning Light
Check
Fuel Cap Warning Light
Seat
Belt Warning Light (Front seat)
Door-Ajar Warning Light
Low
Washer Fluid Level Warning Light
Tire
Pressure Monitoring System Warning Light
KEY
Warning Light
Low
Speed Pre-Collision System Warning Light
* 1: The light turns on when the ignition is switched on for
an operation check,
and turns off a few seconds later or when the engine is started...
Other information:
DESCRIPTION Operating the VSC OFF switch (combination switch assembly) makes it possible for TRC and/or VSC operation to be prohibited. Pressing the VSC OFF switch (combination switch assembly) changes to TRC OFF mode, and turns off TRC operation. In addition, a TRC cancel message is displayed on the multi-information display in the combination meter assembly...
DESCRIPTION The power steering ECU assembly receives signals from the steering sensor, skid control ECU (brake actuator assembly), forward recognition camera, ECM and clearance warning ECU assembly via CAN communication. DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Return-to-normal Condition Note U010087 Lost Communication With ECM/PCM "A" Missing Message Lost communication with ECM
CAN communication system
ECM
EPS warning light: Does not come on After normal confirmation - U012687 Lost Communication with Steering Angle Sensor Module Missing Message Lost communication with steering sensor
CAN communication system
Steering sensor
EPS warning light: Does not come on After normal confirmation - U012987 Lost Communication with Brake System Control Module Missing Message Lost communication with skid control ECU (brake booster with master cylinder assembly)
CAN communication system
Skid control ECU (Brake booster with master cylinder assembly)(for TMC Made HV Model)
Skid control ECU (Brake actuator assembly)(for TMMF Made HV Model)
EPS warning light: Does not come on After normal confirmation - U014087 Lost Communication with Body Control Module Missing Message Lost communication with main body ECU (multiplex network body ECU)
CAN communication system
Main body ECU (multiplex network body ECU)
EPS warning light: Does not come on After normal confirmation - U023A87 Lost Communication with Image Processing Module "A" Missing Message Lost communication with forward recognition camera
CAN communication system
Forward recognition camera
EPS warning light: Does not come on After normal confirmation w/ Toyota Safety Sense PROCEDURE 1...
