Toyota Yaris: Owner Maintenance / Brake/Clutch Fluid

Toyota Yaris XP210 (2020-2025) Owner's Manual / Maintenance and Care / Owner Maintenance / Brake/Clutch Fluid

The brakes and clutch draw fluid from the same reservoir.

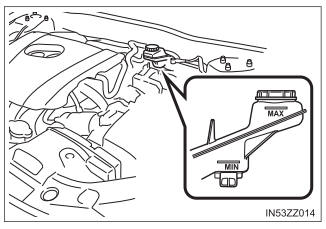

Inspect the fluid level in the reservoir regularly. It should be kept between the MAX and MIN lines.

The level normally drops with accumulated distance, a condition associated with wear of brake and clutch linings. If it is excessively low, have the brake/clutch system inspected by your Toyota dealer.

Toyota Yaris. Brake/Clutch Fluid

WARNING

If the brake/clutch fluid level is low, have the brakes inspected

A low brake/clutch fluid level is dangerous.

A low level could indicate brake lining wear or a brake system leak which could cause the brakes to fail and lead to an accident.
