Toyota Yaris: G16e-gts (battery / Charging) / Battery Current Sensor
Components
COMPONENTS
ILLUSTRATION
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 2 FRAME WIRE |
| *3 | BATTERY STATE SENSOR ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
2. REMOVE DECK BOARD ASSEMBLY
Click here
3. REMOVE BATTERY STATE SENSOR ASSEMBLY

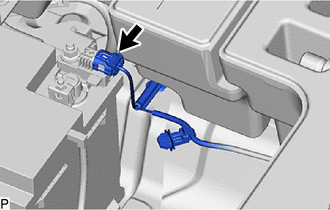

| (a) Disconnect the battery state sensor assembly connector. |
|

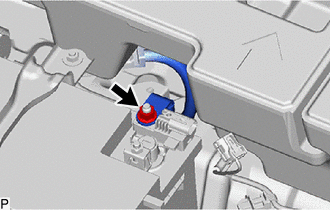

| (b) Remove the nut and disconnect the No. 2 frame wire from the battery state sensor assembly. |
|
| (c) Loosen the nut and remove the battery state sensor assembly from the auxiliary battery. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL BATTERY STATE SENSOR ASSEMBLY
(a) Install the battery state sensor assembly to the auxiliary battery and tighten the nut.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
(b) Connect the No. 2 frame wire to the battery state sensor assembly with the nut.
Torque:
7.6 N·m {77 kgf·cm, 67 in·lbf}
(c) Connect the battery state sensor assembly connector.
2. INSTALL DECK BOARD ASSEMBLY
Click here
3. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function thatcompletes learning when the respective system is used.
Click here
