Toyota Yaris: Wiper / Washer / Washer Motor
Components
COMPONENTS
ILLUSTRATION
| *A | w/ Brake Duct Hole | - | - |
| *1 | FRONT FENDER LINER RH | - | - |
ILLUSTRATION
| *1 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY | *2 | WASHER HOSE |
Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT WHEEL RH
Click here
.gif)
2. REMOVE FRONT FENDER LINER RH

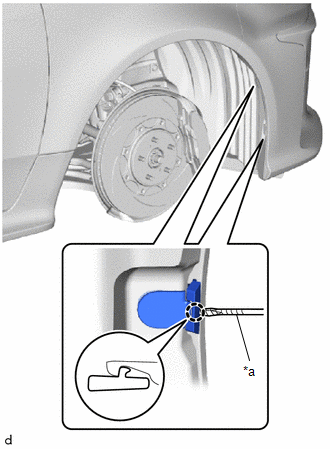

| (a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to separate the 2 retainers. |
|

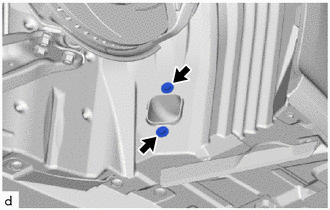

(b) w/ Brake Duct Hole:
| (1) Remove the 2 screws. |
|

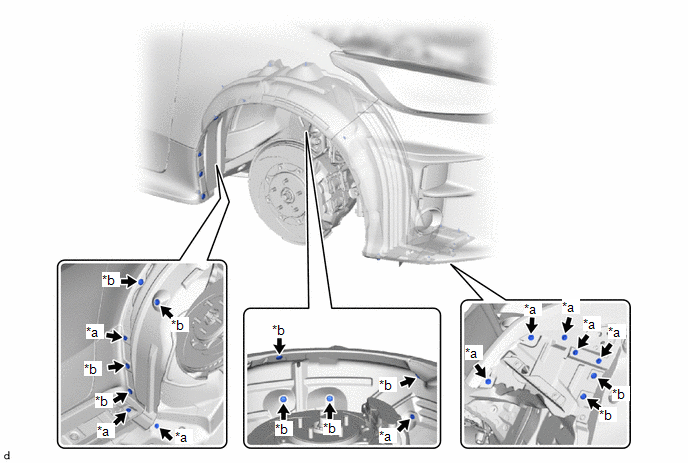

(c) Remove the 9 screws and 10 clips.
| *a | Screw | *b | Clip |
(d) Remove the grommet and front fender liner RH.
3. DRAIN WASHER FLUID

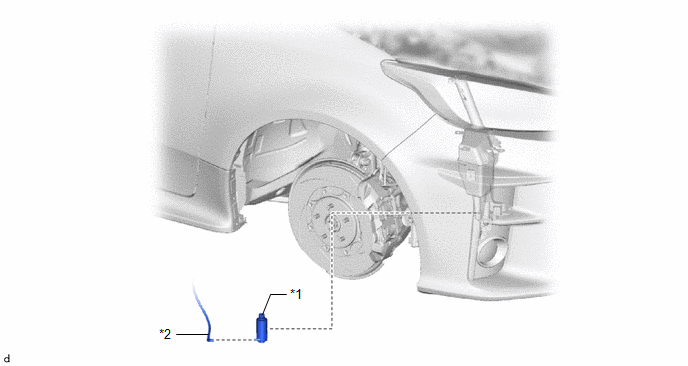

| (a) Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid. HINT: Use a container to collect the washer fluid. |
|
4. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
| (a) Disconnect the connector. |
|
(b) Remove the windshield washer motor and pump assembly.
Inspection
INSPECTION
PROCEDURE
1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
HINT:
This check should be performed with the windshield washer motor and pump assembly installed to the windshield washer jar assembly.
(a) Fill the windshield washer jar assembly with washer fluid.

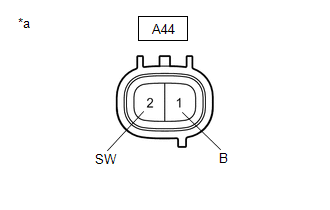

| (b) Check that washer fluid flows from the windshield washer jar assembly. OK:
If the result is not as specified, replace the windshield washer motor and pump assembly. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
(a) Install the washer motor and pump assembly.
(b) Connect the connector.
2. ADD WASHER FLUID
(a) Connect the front washer hose.
(b) Add washer fluid to the washer jar.
3. INSTALL FRONT FENDER LINER RH
(a) Install the front fender liner RH with the grommet.
(b) Install the 10 clips and 9 screws.
(c) w/ Brake Duct Hole:
(1) Install the 2 screws.

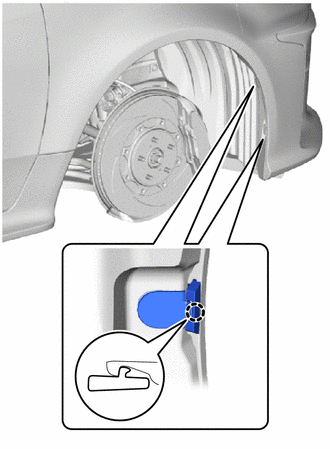

| (d) Engage the claws to install the 2 retainers. |
|
4. INSTALL FRONT WHEEL RH
Click here
.gif)
