Toyota Yaris: Airbag System / Terminals Of Ecu
TERMINALS OF ECU

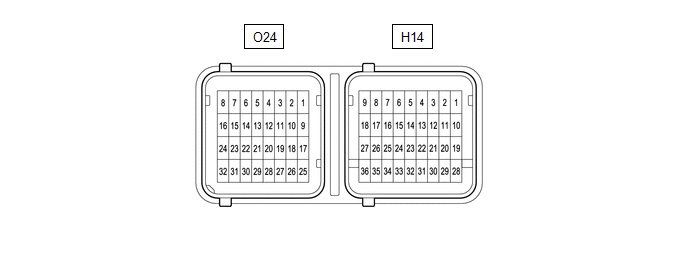

AIRBAG SENSOR ASSEMBLY
| Terminal No. | Terminal Symbol | Destination |
|---|---|---|
| O24-1 | ICR+ | Curtain shield airbag assembly RH |
| O24-2 | ICR- | |
| O24-3 | PR- | Front seat outer belt assembly RH |
| O24-4 | PR+ | |
| O24-5 | PL+ | Front seat outer belt assembly LH |
| O24-6 | PL- | |
| O24-7 | ICL- | Curtain shield airbag assembly LH |
| O24-8 | ICL+ | |
| O24-9 | SFR+ | Front seat airbag assembly RH |
| O24-10 | SFR- | |
| O24-15 | SFL- | Front seat airbag assembly LH |
| O24-16 | SFL+ | |
| O24-19 | BCR- | No. 1 side airbag sensor RH |
| O24-20 | BCR+ | |
| O24-25 | BBR+ | Side Airbag Pressure Sensor RH |
| O24-26 | BBR- | |
| O24-28 | BCL+ | No. 1 side airbag sensor LH |
| O24-29 | BCL- | |
| O24-31 | BBL- | Side Airbag Pressure Sensor LH |
| O24-32 | BBL+ | |
| H14-3 | P- | Instrument panel passenger without door airbag assembly |
| H14-4 | P+ | |
| H14-6 | D+ | Horn button assembly |
| H14-7 | D- | |
| H14-21 | MSW- | Airbag cut off switch cylinder sub-assembly |
| H14-22 | MSW+ | |
| H14-26 | CAFH | CAN communication line |
| H14-27 | CAFL | |
| H14-28 | -SR | Front airbag sensor RH |
| H14-29 | +SR | |
| H14-30 | +SL | Front airbag sensor LH |
| H14-31 | -SL | |
| H14-32 | E2 | Ground |
| H14-33 | E1 | |
| H14-34 | P-AB | Passenger airbag OFF indicator (Telltale light assembly) |
| H14-35 | PAON | Passenger airbag ON indicator (Telltale light assembly) |
| H14-36 | IGR | A/BAG-IGR fuse |
