Toyota Yaris: Seat Belt Warning System / System Diagram

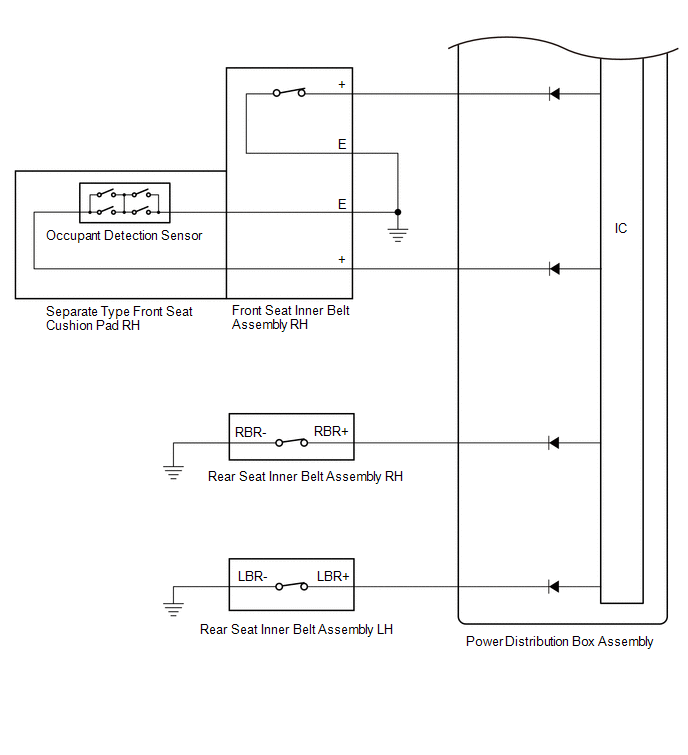

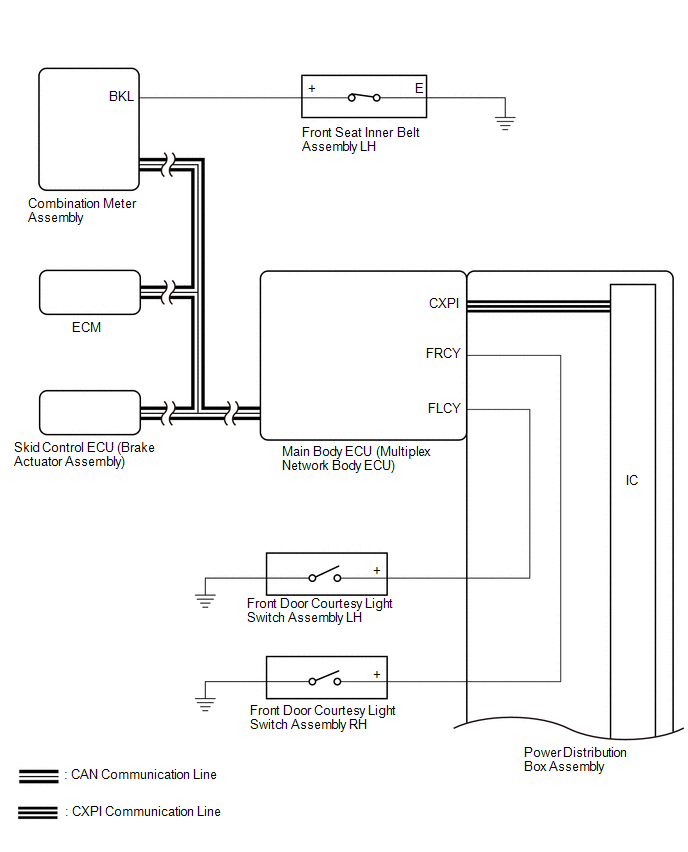

SYSTEM DIAGRAM
Communication Table
Sender | Receiver | Signal | Communication Method |
Main body ECU (multiplex network body ECU) | Combination meter assembly | -
Front seat buckle switch signal (for Passenger side)
-
Rear seat belt buckle switch signal (LH/RH)
-
Front door courtesy light switch signal (LH/RH)
-
Parking brake switch
| CAN |
Power Distribution Box Assembly | Main body ECU (multiplex network body ECU) | -
Front seat buckle switch signal (for Passenger side)
-
Rear seat belt buckle switch signal (LH/RH)
| CXPI |
Skid control ECU (brake actuator assembly) | Combination meter assembly | Vehicle speed | CAN |
ECM | Combination meter assembly | Gear position |
SYSTEM DESCRIPTION SEAT BELT WARNING SYSTEM DESCRIPTION (a) Seat belt warning light operation for driver seat belt: (1) The seat belt warning light on the combination meter assembly illuminates, blinks or turns off in accordance with the driver seat belt state, vehicle speed, shift lever position and parking brake state...
